| Category | Series | Model | Working Table Size | Physical Dimension | Machine Weight (Approximately) | Power Supply | Cooling System | Working Power |
|---|---|---|---|---|---|---|---|---|

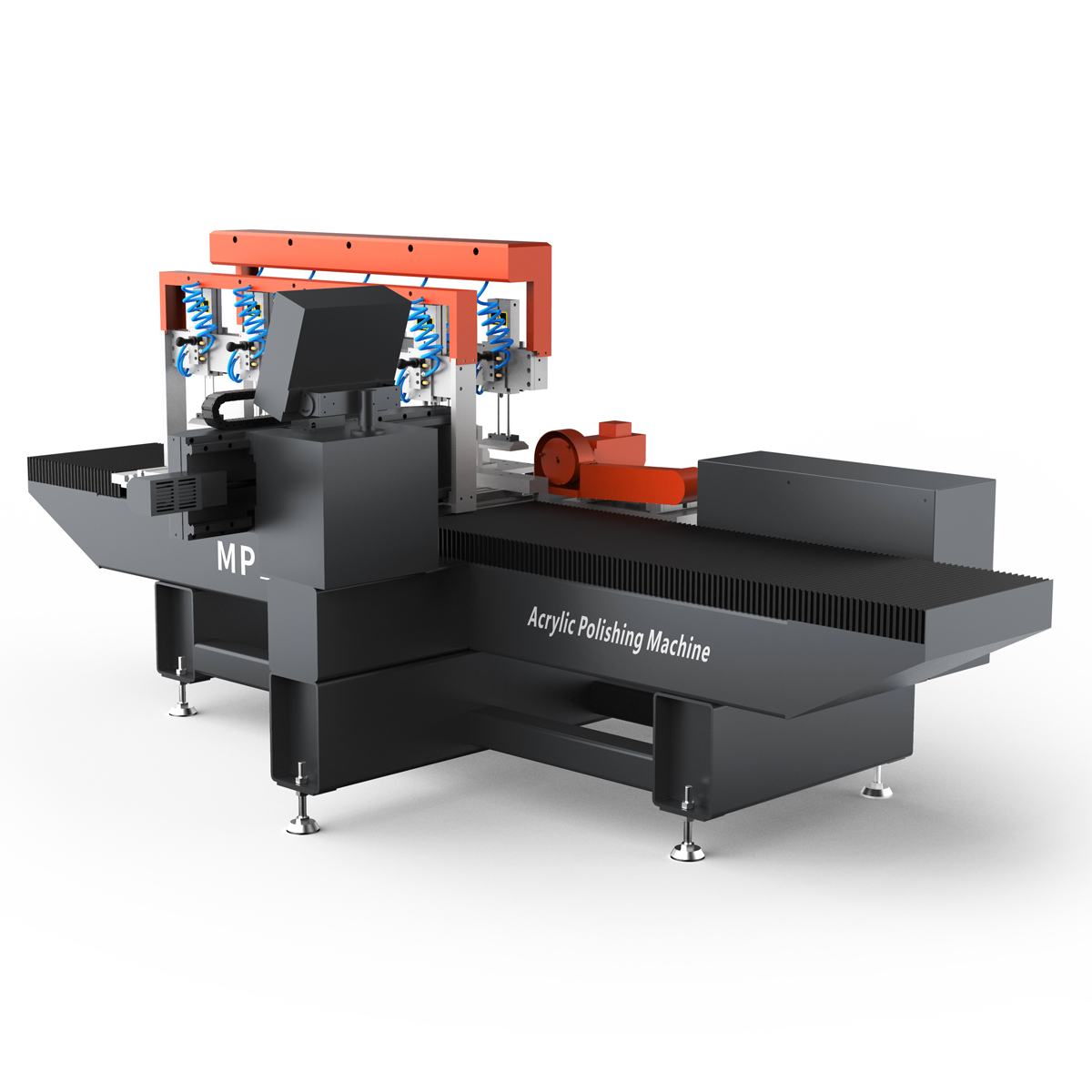

| Acrylic Processing | MP Series | MPD4 | Processing Length: 51.18" / 122" | 660 x 889 x 1473 mm (26" x 35" x 58") | 1400 lbs | 220V Single Phase | Air Cooling | Spindle Power: 3 HP (2.2 kW) |

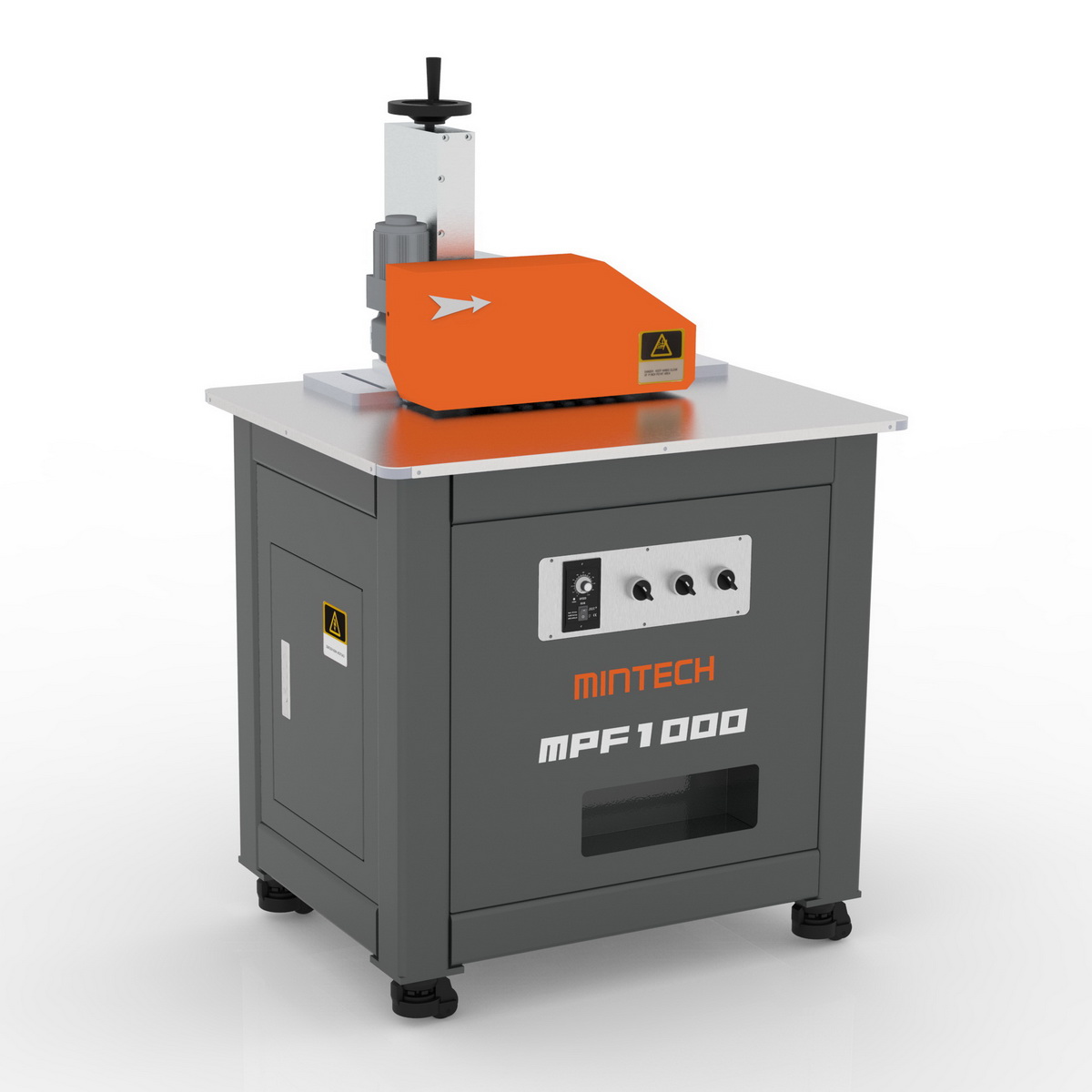

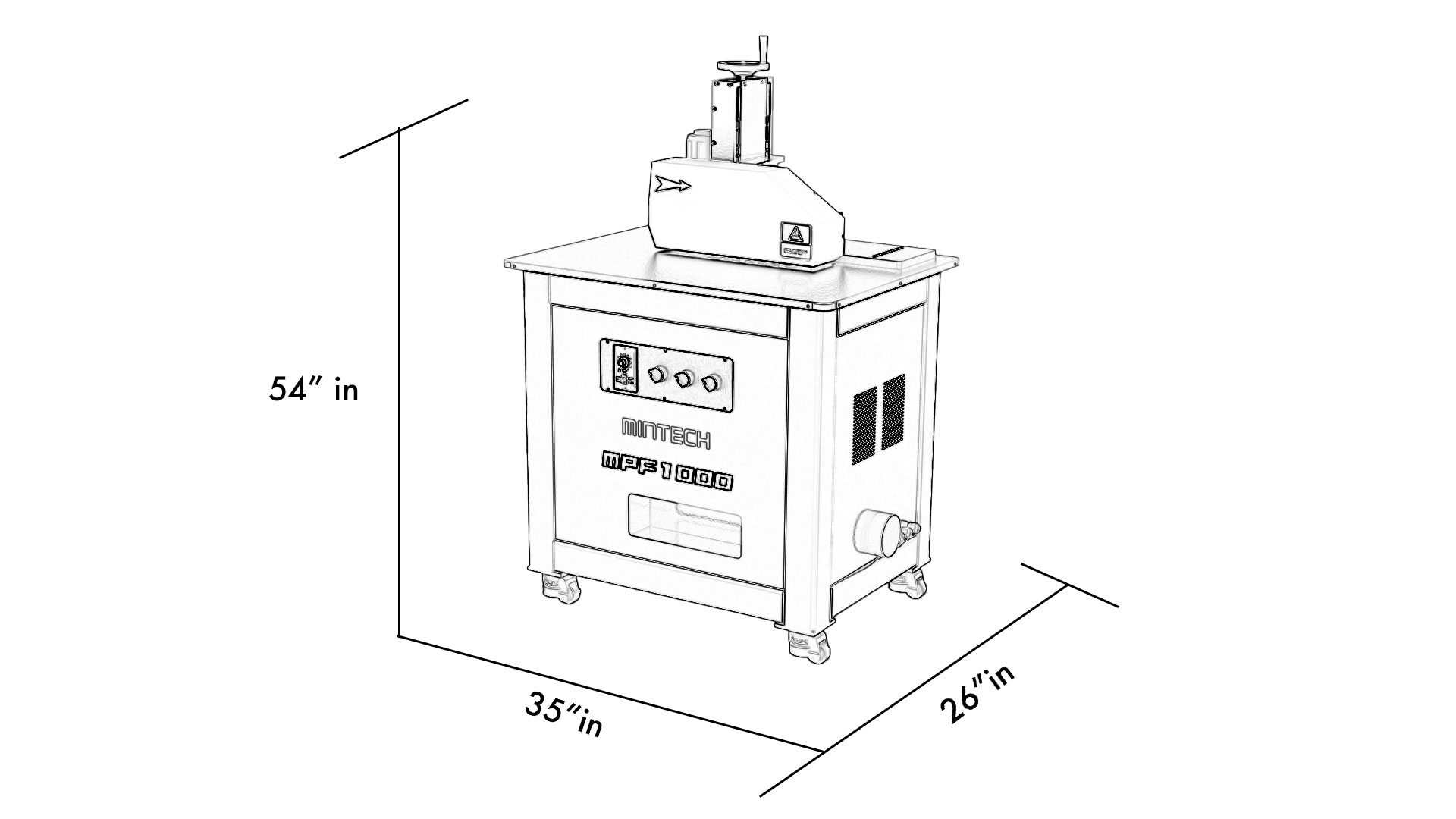

| Acrylic Processing | MP Series | MPF1000 | Processing Length ≥ 4" | 660 x 880 x 1360 mm (26" x 35" x 54") | 600 lbs | 220V Single Phase | Water Cooling | Spindle Power: 4 HP (3 kW) |
| Acrylic Processing | MPS Series | MPS10 | Processing Length: ≥ 122" | 4369 x 1346 x 1524 mm (172" x 53" x 60") | 220V Single Phase | Air Cooling | Spindle Power: 2 HP (1.5KW) | |
| Acrylic Processing | MPS Series | MPS4 | Processing Length: ≥ 51.18" | 2083 x 1118 x 1524 mm (82" x 44" x 60") | 1200 lbs | 220V Single Phase | Air Cooling | Spindle Power: 2 HP (1.5KW) |
| CNC Router | MR Series | MR48 | 4x8 ft (1250x2500mm) | 2200 x 3100 x 1750 mm (87" x 122" x 69") | 3400 lbs | 220V Single Phase | Water Cooling | Spindle Power: 5.3 HP (4 kW) |
| CNC Router | MR Series | MR510 | 5x10 ft (1530x3060mm) | 2450 x 3800 x 1750 mm (97" x 150" x 69") | 3900 lbs | 220V Single Phase | Water Cooling | Spindle Power: 5.3 HP (4 kW) |

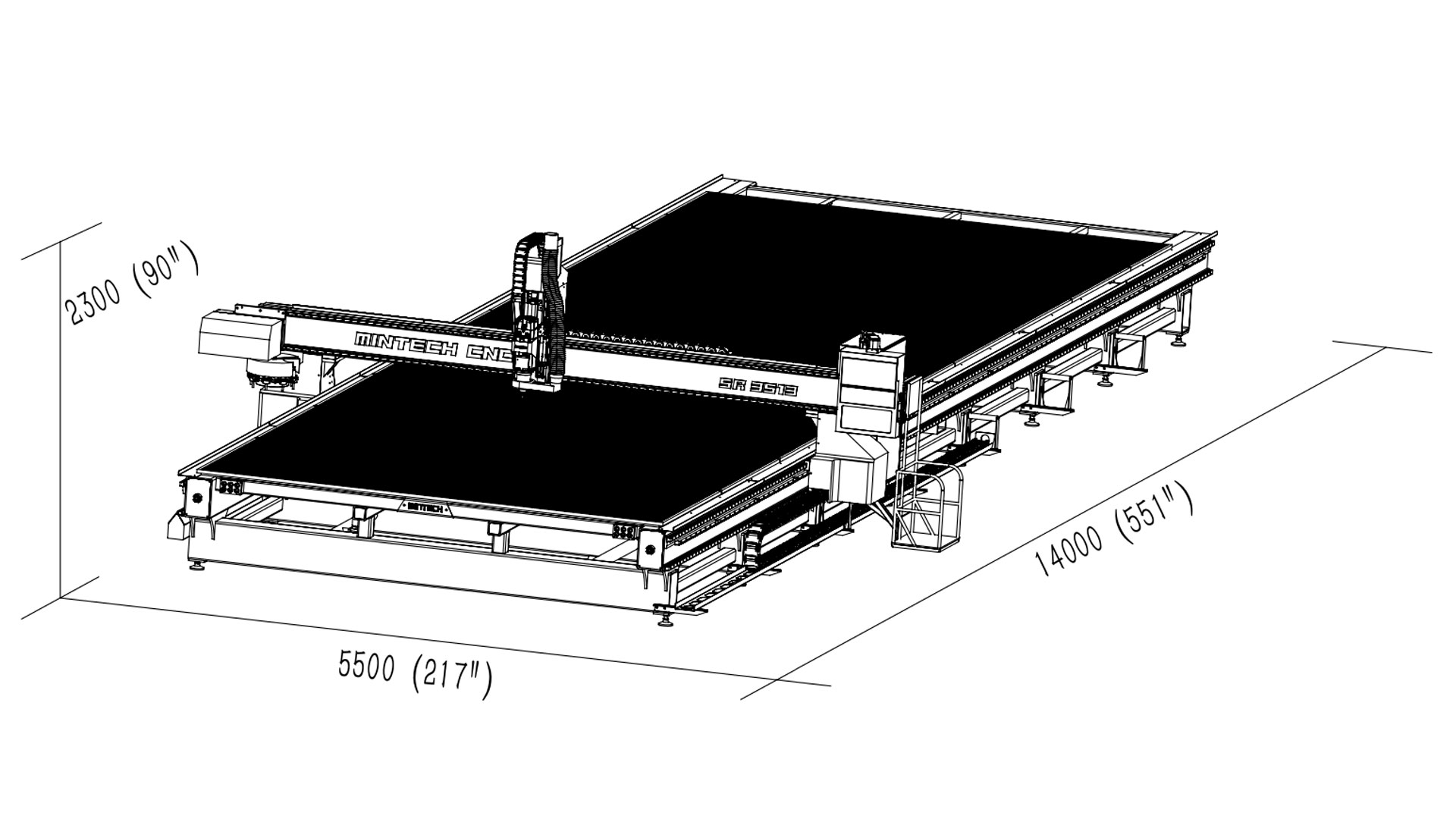

| CNC Router | SR Series | SR3513 | 11x43 ft (3500x13000mm) | 5500 x 14000 x 2300 mm (217" x 551" x 90") | 220V Three Phase | Air Cooling | Spindle Power: 9000 Watt | |
| CNC Router | SR Series | SR48 | 4x8 ft (1250x2500mm) | 2230 x 3600 x 2300 mm (88" x 142" x 90") | 4200 lbs | 220V Three Phase | Air Cooling | Spindle Power: 9000 Watt |

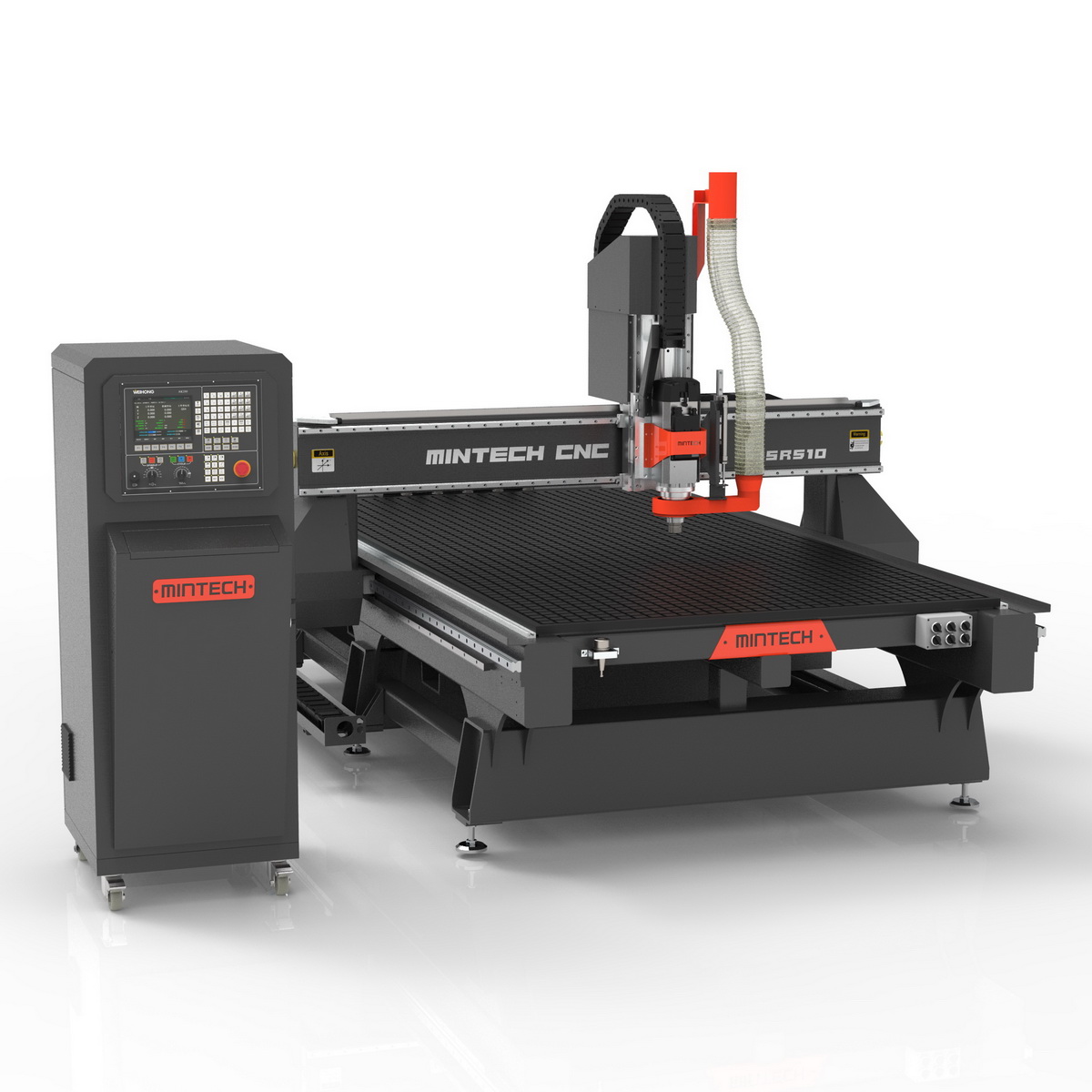

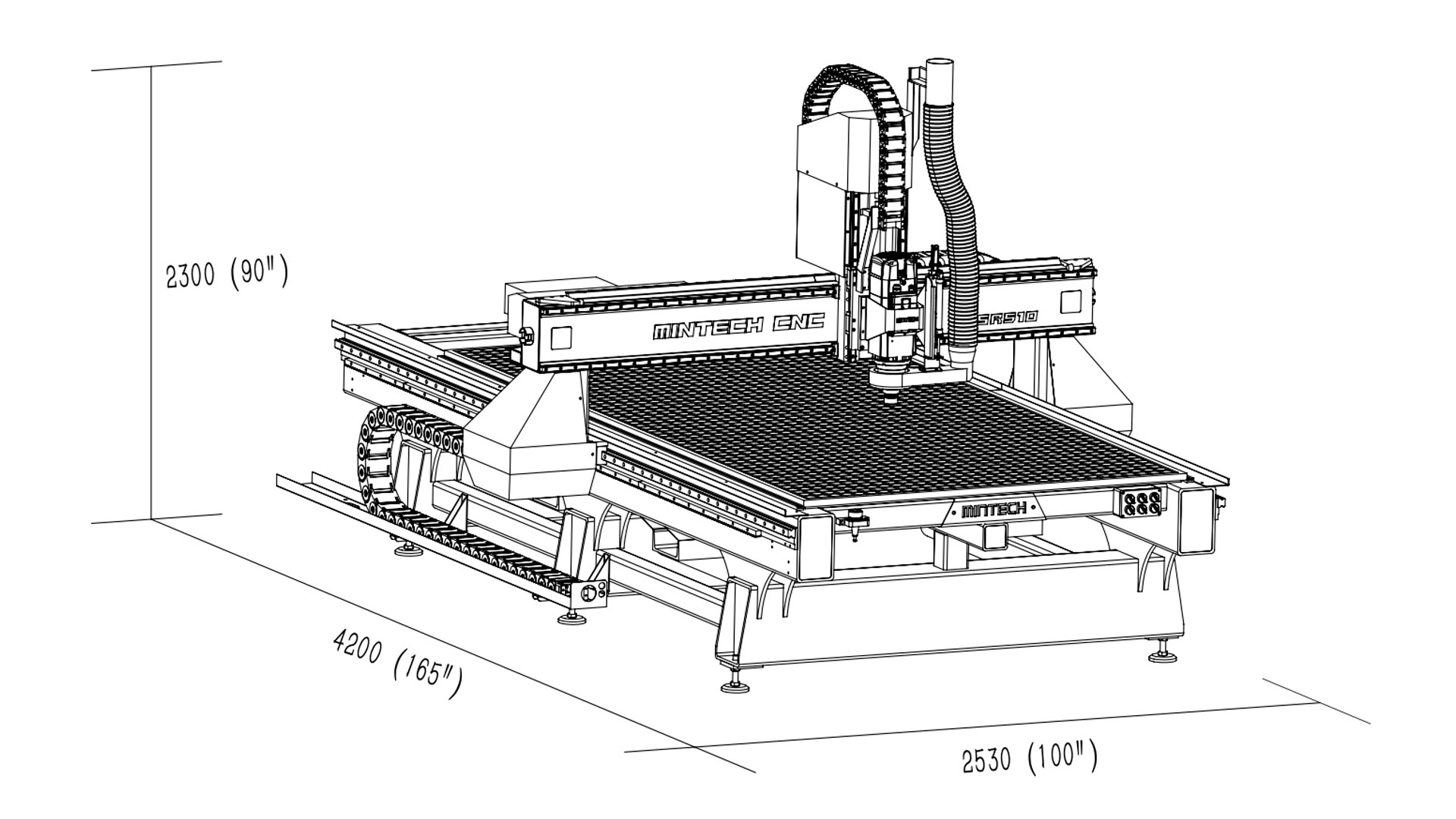

| CNC Router | SR Series | SR510 | 5x10 ft (1530x3060mm) | 2530 x 4200 x 2300 mm (100" x 165" x 90") | 5500 lbs | 220V Three Phase | Air Cooling | Spindle Power: 9000 Watt |
| CNC Router | TR Series | TR48 | 4x8 ft (1250x2500mm) | 2200 x 3370 x 2100 mm (87" x 133" x 83") | 3400 lbs | 220V Three Phase | Air Cooling | Spindle Power: 12 HP (9 kW) |

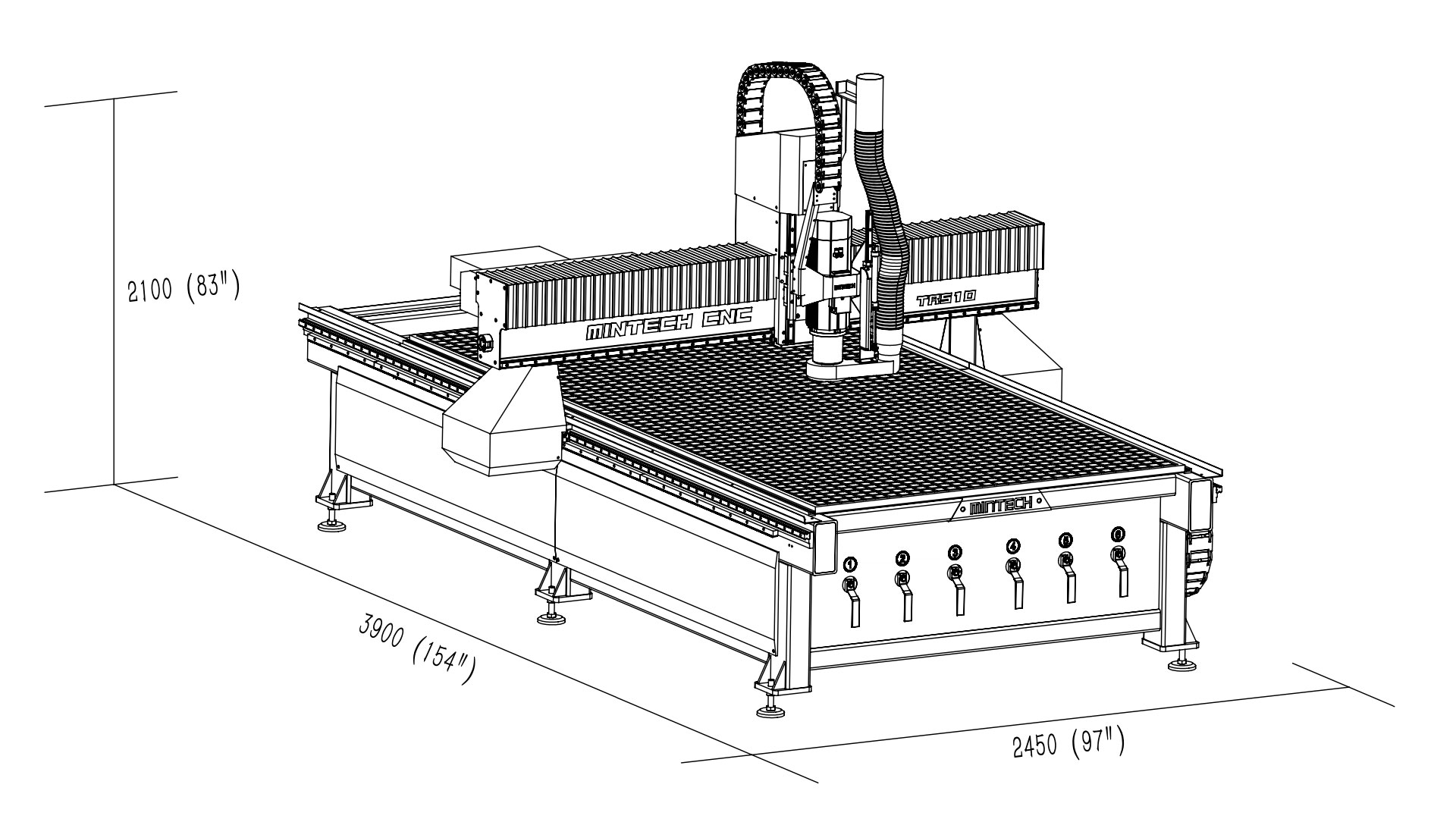

| CNC Router | TR Series | TR510 | 5x10 ft (1530x3060mm) | 2450 x 3900 x 2100 mm (97" x 154" x 83") | 4500 lbs | 220V Three Phase | Air Cooling | Spindle Power: 12 HP (9 kW) |

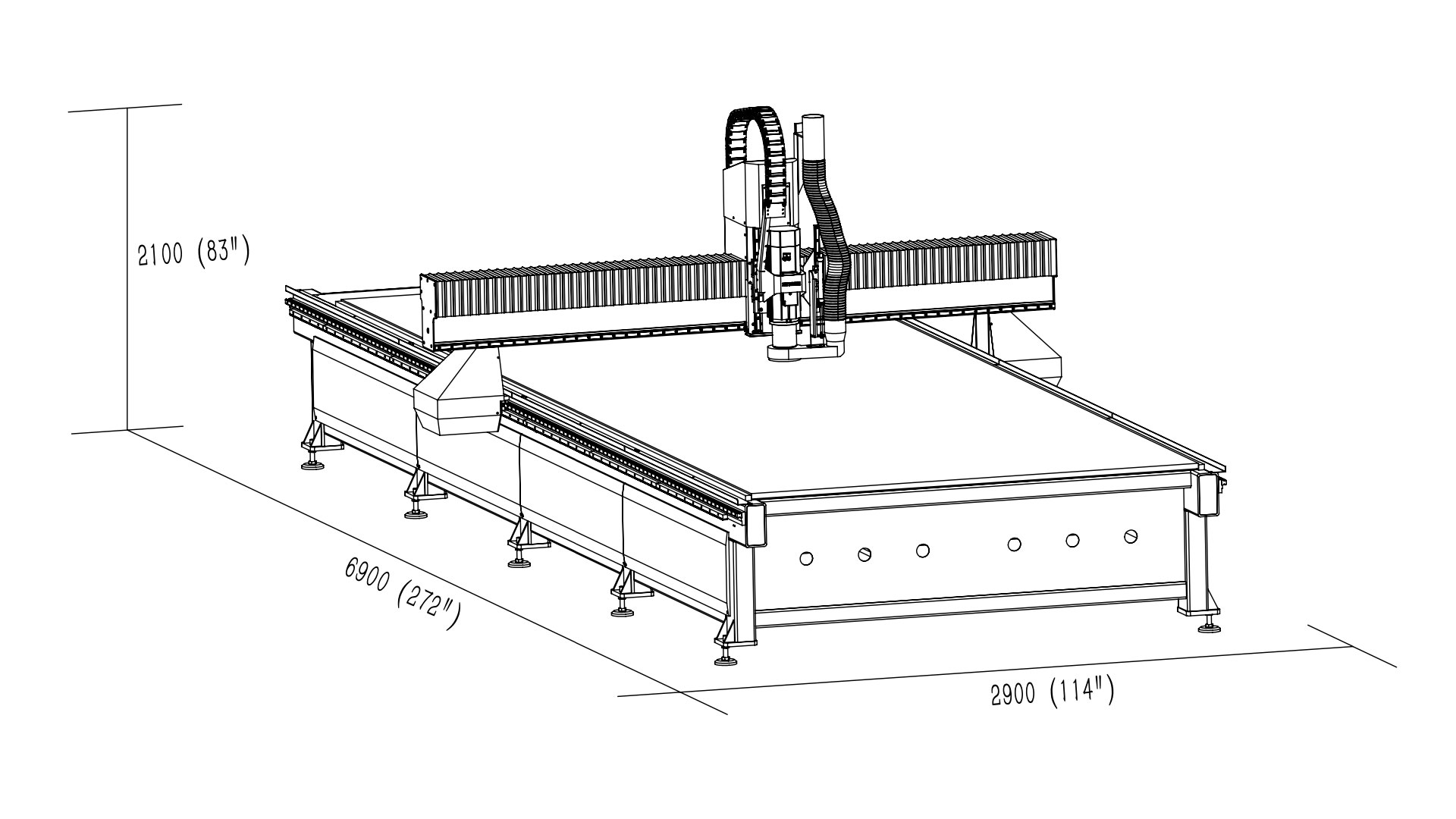

| CNC Router | TR Series | TR720 | 7x20 ft (2000x6000mm) | 2900 x 6900 x 2100 mm (114" x 272" x 83") | 8900 lbs | 220V Three Phase | Air Cooling | Spindle Power: 12 HP (9 kW) |

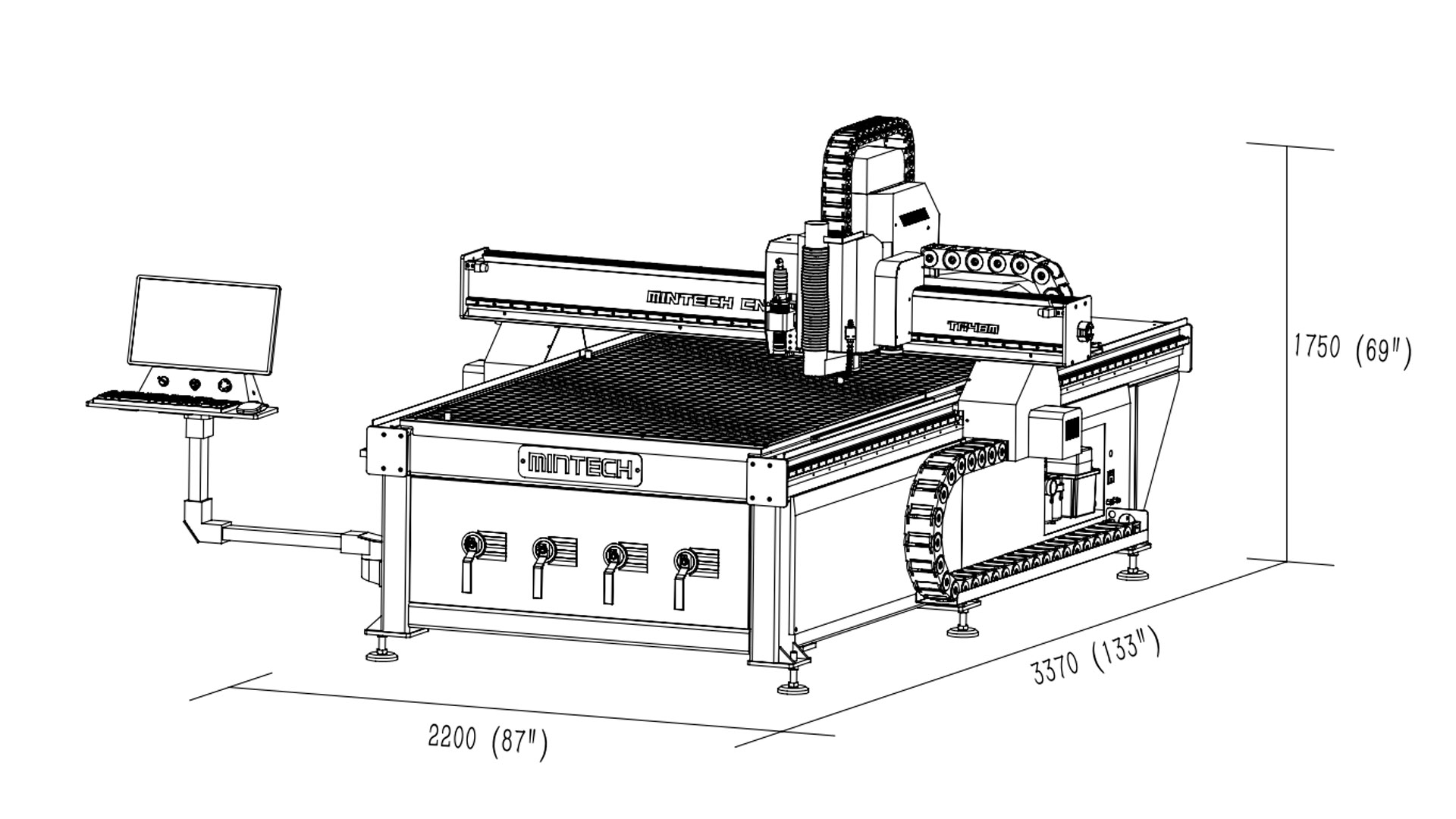

| CNC Router | TR-M Series | TR48M | 4x8 ft (1250x2500mm) | 2200 x 3370 x 1750 mm (87" x 133" x 69") | 3400 lbs | 220V Single Phase | Water Cooling | Spindle Power: 5.3 HP (4 kW) |

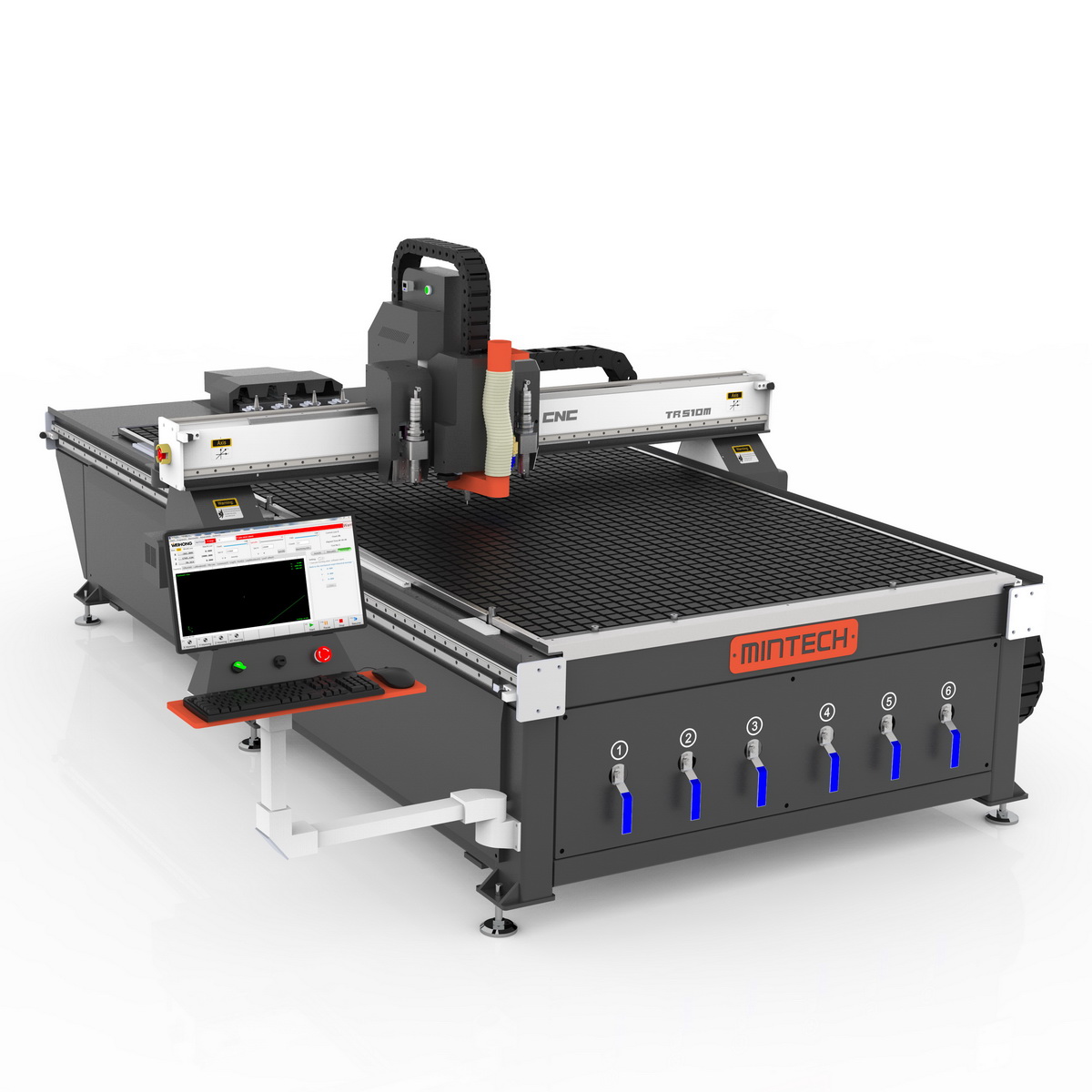

| CNC Router | TR-M Series | TR510M | 5x10 ft (1530x3060mm) | 2450 x 4000 x 1750 mm (97" x 158" x 69") | 3900 lbs | 220V Single Phase | Water Cooling | Spindle Power: 5.3 HP (4 kW) |

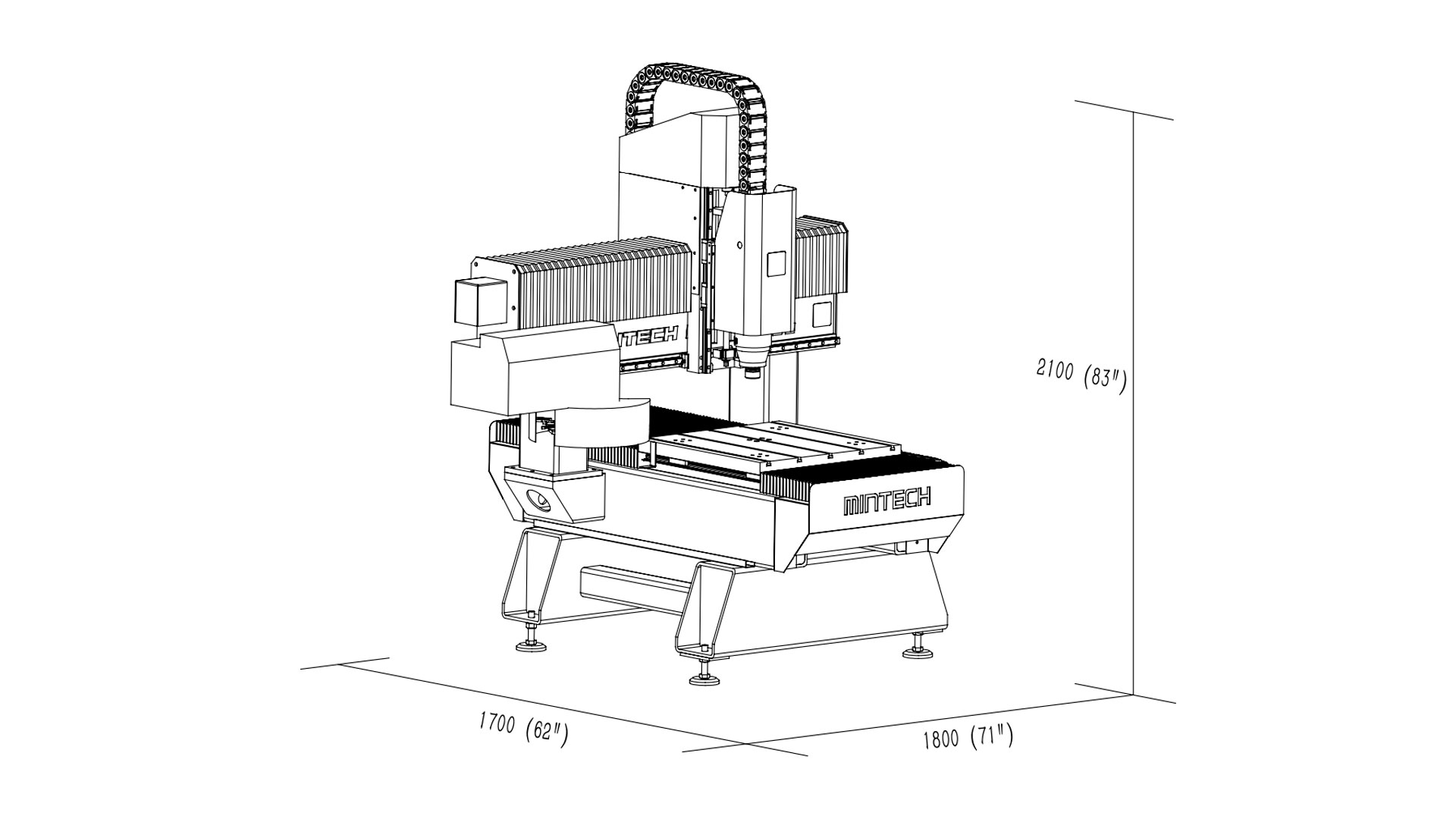

| CNC Router | VR Series | VR22 | 2x2 ft (610x610mm) | 1800 x 1700 x 2100 mm (71" x 67" x 83") | 1800 lbs | 220V Three Phase | Water Cooling | Spindle Power: 5.3 HP (4 kW) |

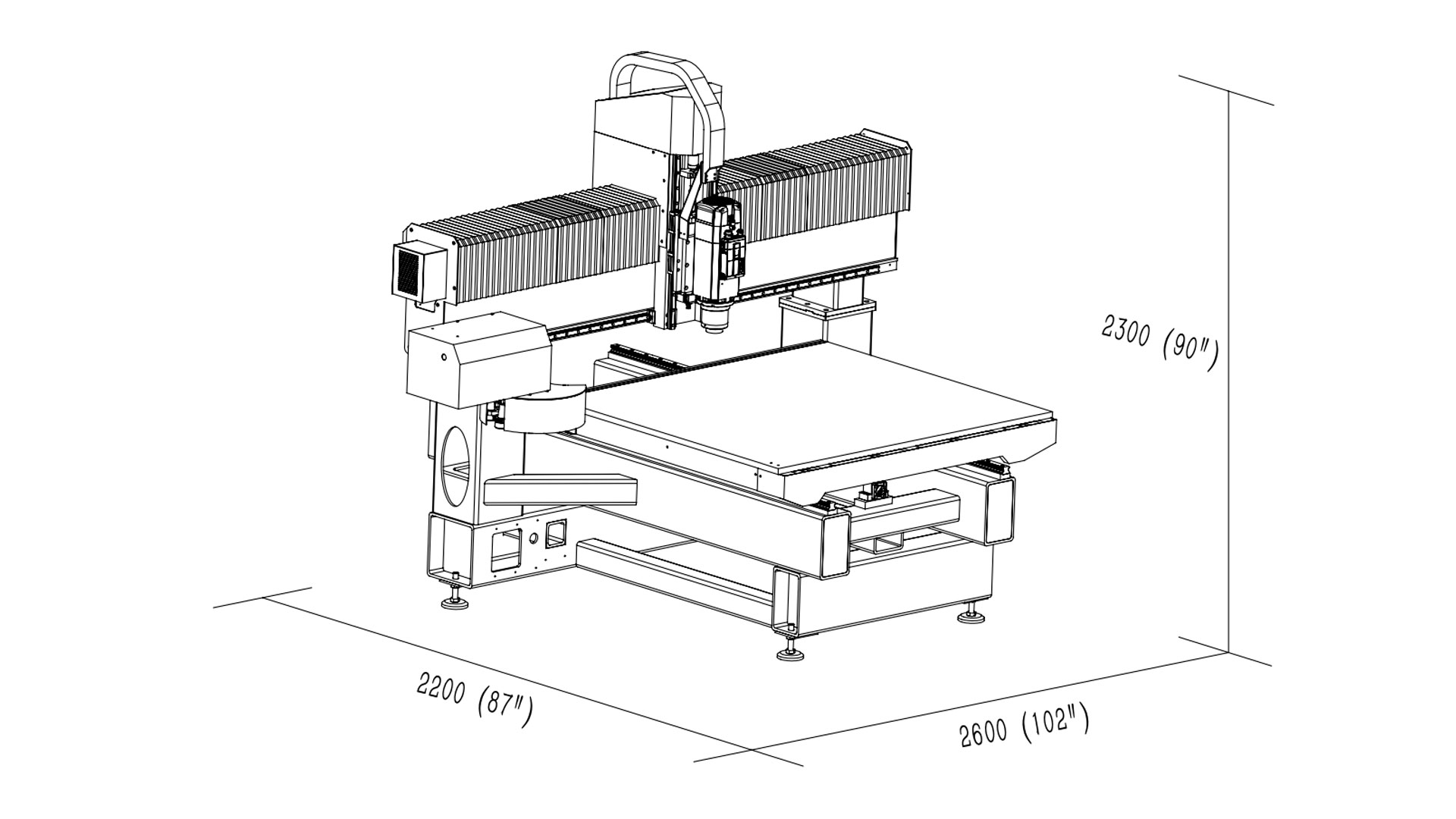

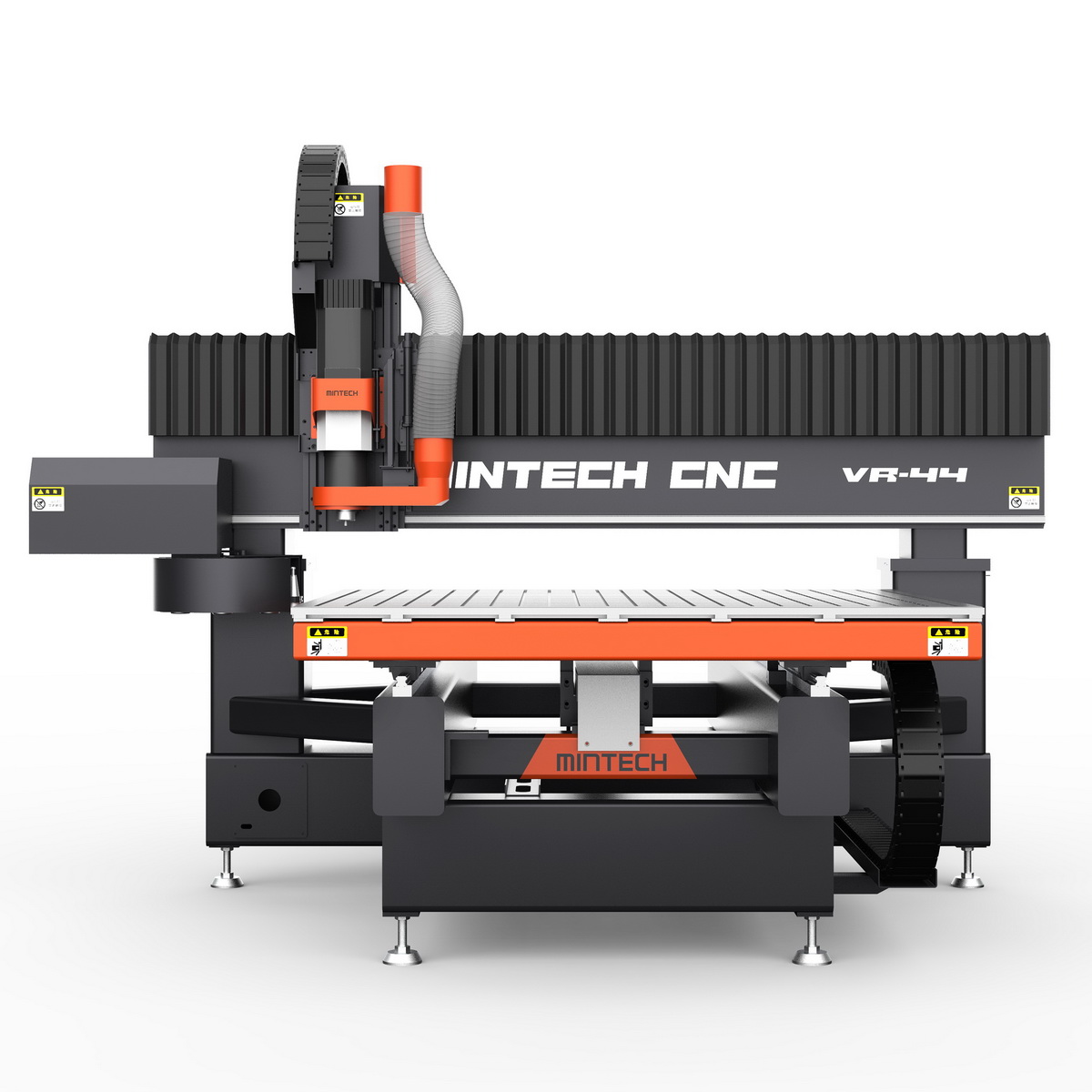

| CNC Router | VR Series | VR44 | 4x4 ft (1250x1250mm) | 2600 x 2200 x 2300 mm (102" x 87" x 90") | To Be Determined | 220V Three Phase | Air Cooling | Spindle Power: 12 HP (9 kW) |

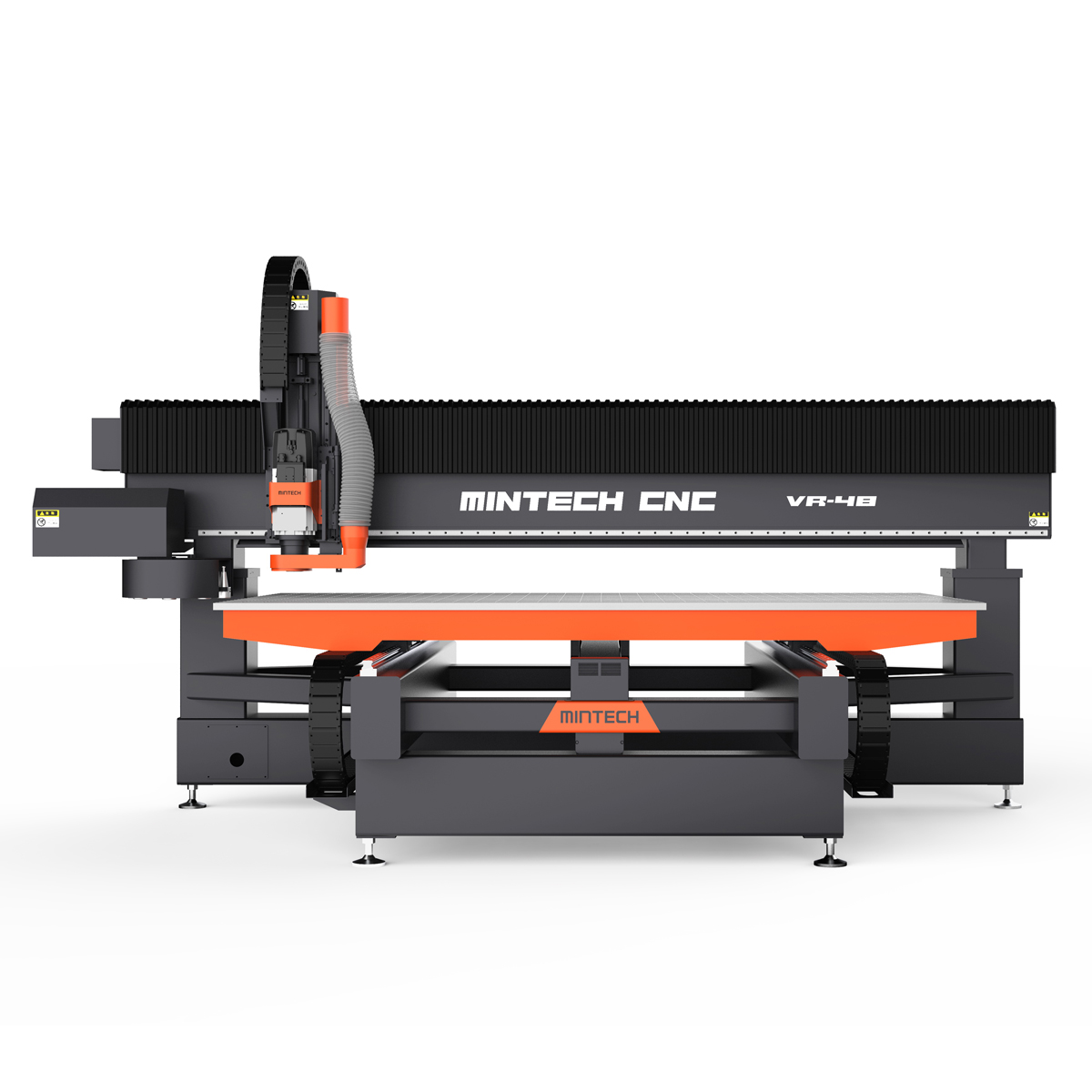

| CNC Router | VR Series | VR48 | 4x8 ft (1250x2500mm) | 3700 x 2200 x 2300 mm (146" x 87" x 90") | To Be Determined | 220V Three Phase | Air Cooling | Spindle Power: 12 HP (9 kW) |
| CO² Laser | HC Series | HC22 | 24x24" (610x610mm) | 1200 x 1470 x 1320 mm (47" x 58" x 52") | 1200 lbs | 220V Three Phase | Water Cooling | Laser Power: 60W, 100W, 180W, 350W, 450W, 550W |
| CO² Laser | HC Series | HC43 | 48x36" (1220x910 mm) | 1965 x 2230 x 1440 mm (78" x 88" x 57") | 3300 lbs | 220V Three Phase | Water Cooling | Laser Power: 60W, 100W, 180W, 350W, 450W, 550W |
| CO² Laser | MC Series | MC43 | 48x36" (1220x910mm) | 2100 x 1640 x 1210 mm (83" x 64.5" x 48") | 1200 lbs | 220V Single Phase | Water Cooling | Laser Power: 150W, 300W, 450W, 600W |
| CO² Laser | MC Series | MC48 | 48x96" (1220x2440mm) | 1815 x 3615 x 1210 mm (72" x 143" x 48") | 1800 lbs | 220V Single Phase | Water Cooling | Laser Power: 150W, 300W, 450W, 600W |
| CO² Laser | MC Series | MC510 | 60"x120" (1525x3050mm) | 2100 x 4230 x 1210 mm (83" x 166.5" x 48") | 2500 lbs | 220V Single Phase | Water Cooling | Laser Power: 150W, 300W, 450W, 600W |

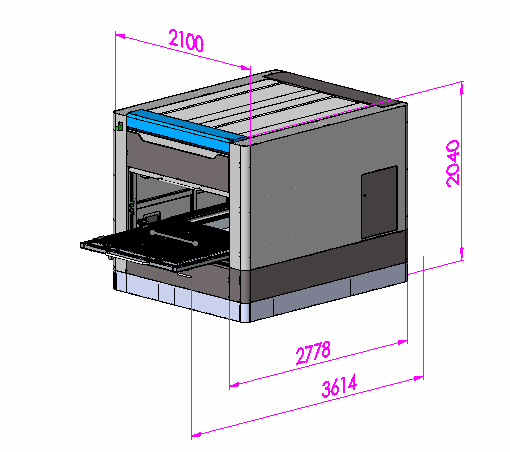

| Fiber Laser | MF Series | MF44 | 51x51" (1300x1300mm) | 2778 x 2100 x 2040 mm (109" x 83" x 80") | 4400 lbs | 220V Three Phase (1500W and 2000W can support single-phase or 3-phase) |
Water Cooling | Laser Power: 1500W, 2000W, 3000W, 4000W, 6000W |

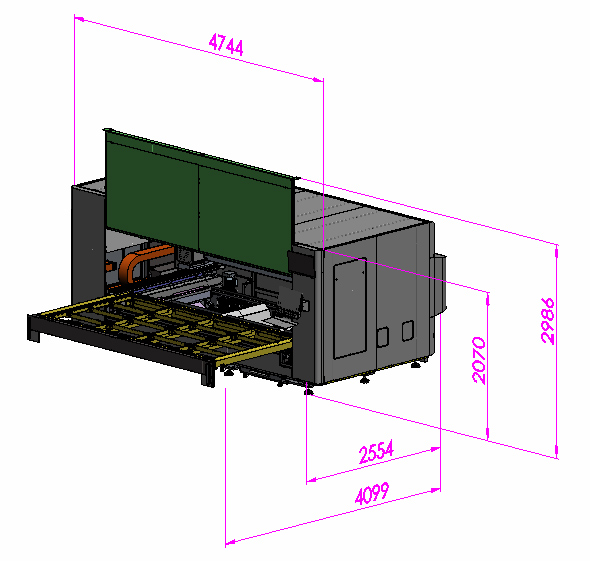

| Fiber Laser | MF Series | MF510 | 60x120" (1500x3000mm) | 4744 x 2554 x 2070 mm (187" x 101" x 82") | 10000 lbs | 220V Three Phase | Water Cooling | Laser Power: 1500W, 2000W, 3000W, 4000W, 6000W |
