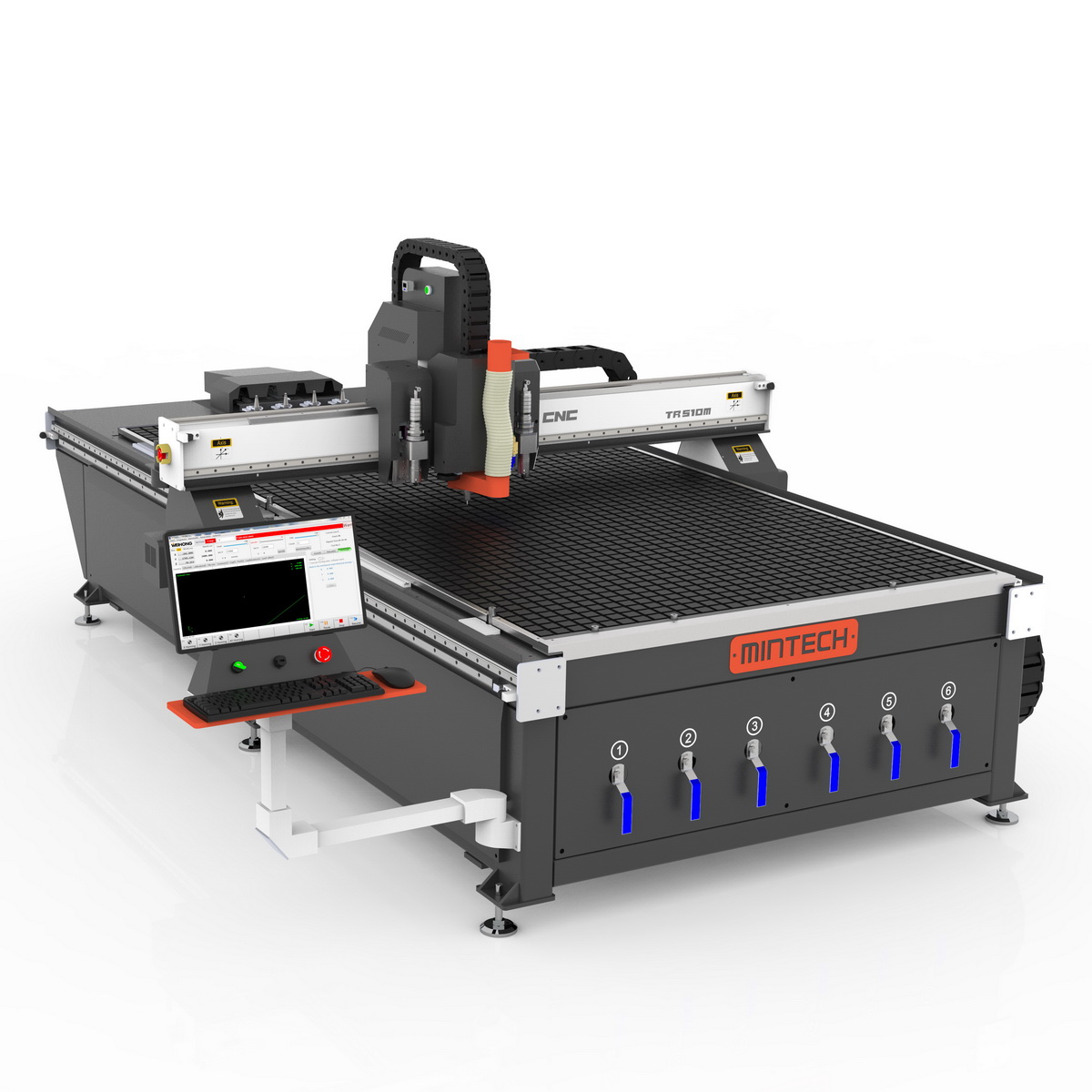

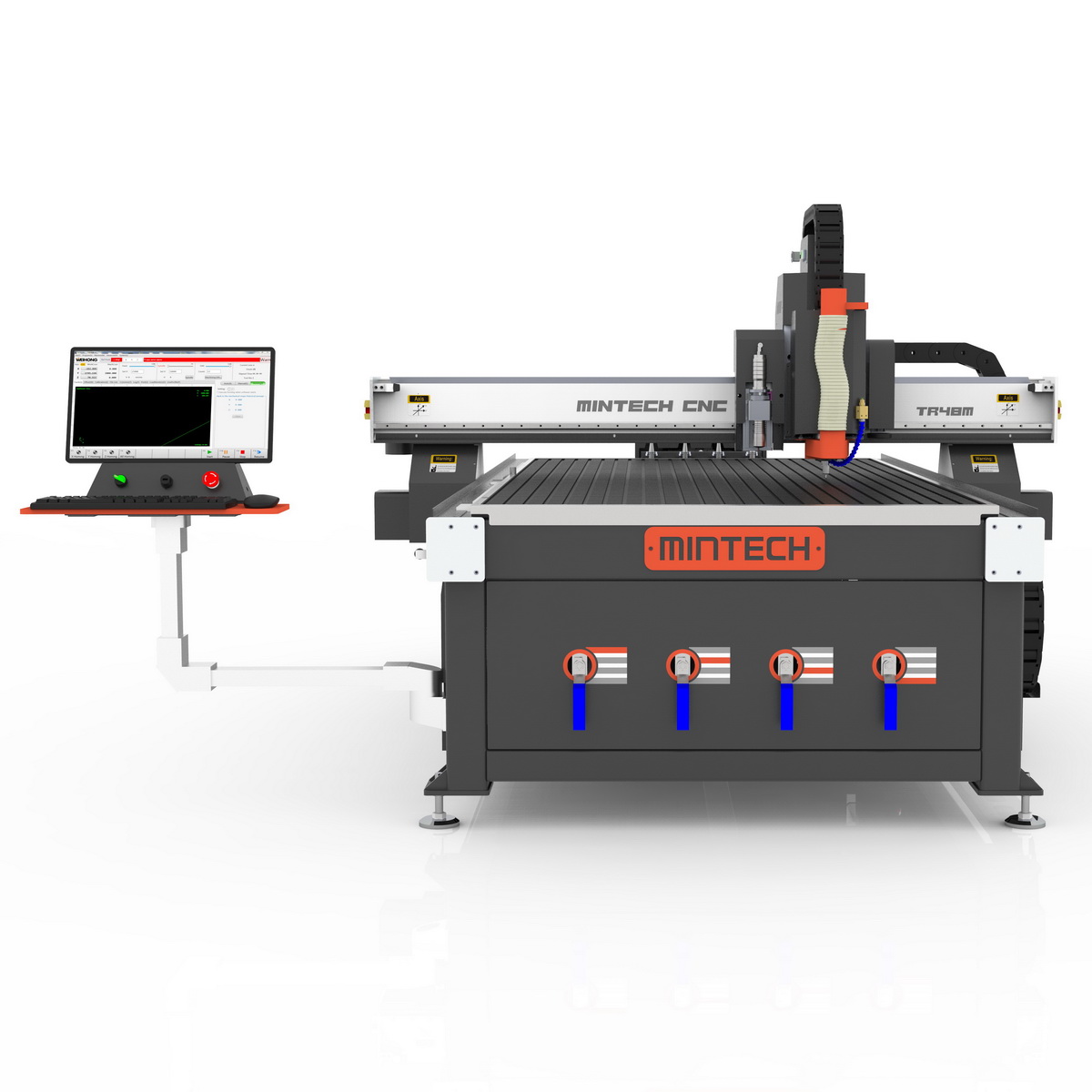

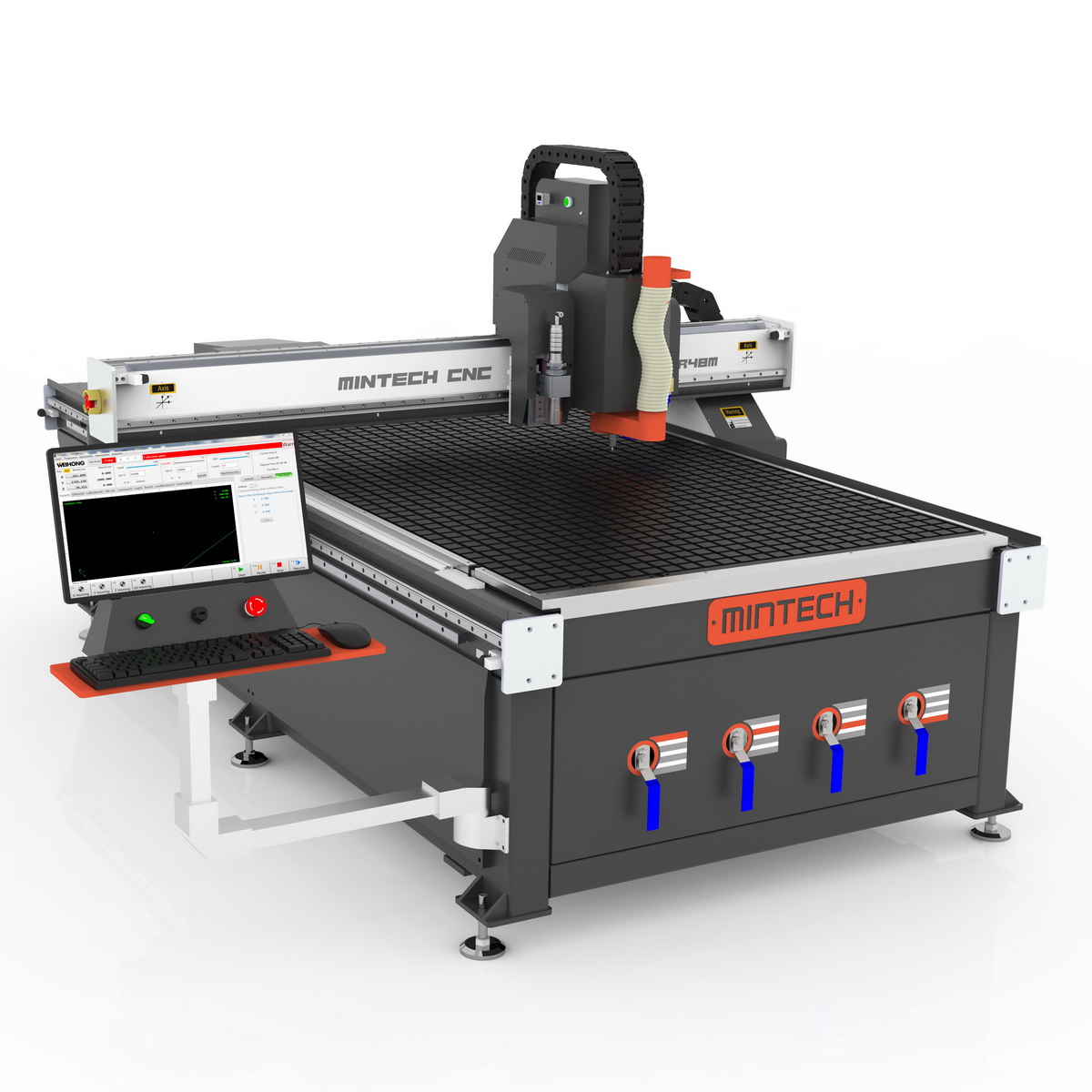

TR-M Series

High-precision TR-M Series CNC Router for UV printing, signage, packaging, textiles, and industrial fabrication. Multi-function CNC cutting machine, all-in-one CNC cutter, precision CNC machining across metals, plastics, rubber, and composite materials. Available across the USA including California.

POWER SUPPLY
220V Single Phase

CONTROL SYSTEM
MDRCNCRouter VC204-C

MOTOR TYPE
Servo Motor

COOLING SYSTEM
Water Cooling

SPINDLE POWER
4000 Watt

SPINDLE RPM
40000 RPM

The TR-M Series CNC Router is a high-precision, multi-function CNC Router engineered for versatility in industrial applications. Perfect as an all-in-one CNC Cutter, it excels in cutting, engraving, and drilling a wide range of materials. Designed for CNC Router for UV Printing, CNC Cutting Machine, and advanced fabrication, it combines automation, efficiency, and precision to meet the needs of professional users across the USA, from California to nationwide operations.

Key Features:

Versatile Machining Capabilities.
- Supports multiple cutting tools:
  - Electric Vibrating Knife (ideal for rubber cutting in plastics industry)
  - Pneumatic Vibrating Knife
  - Active Wheel Knife
  - Pointed Knife
  - Oblique Knife (V Cut)
  - Spring Knife (Kiss Cut)
  - Creasing Knife (perfect for corrugated cardboard cutting in packaging)
CCD Automatic Recognition System
- Built-in CCD camera detects material marks automatically for precise path alignment.
- Essential for printing, flexi sign, signage, and packaging industries, including post-printing fabric cutting for apparel.
Broad Material Compatibility
- Metals: Copper, aluminum, aluminum composite panels, PV sheets, and other soft/hard metals.
- Plastics & Polymers: Acrylic, PVC, EVA, rubber.
- Composites & New Materials: Carbon fiber and other advanced composites.
- Flexible Materials: Foam, rubber, fabric, leather, post-printed textiles.
- Hard Materials: Wood, acrylic, fiberglass, decorative panels.
Advanced CNC System
- User-friendly high-performance CNC controls for complex engraving and high-volume cutting.
- Automatic tool changing reduces manual labor and cycle times.
High Efficiency and Precision
- 40K RPM spindle paired with precision servo drive ensures stable, efficient cutting and engraving.
- Exceptional surface finish quality across soft and hard materials, suitable for multiple industries.

Applications:

Packaging Industry: Corrugated cardboard cutting, creasing, and die-cutting.
Plastics Industry: Rubber and EVA sheet cutting for industrial applications.
Advertising & Signage: PV sheets, aluminum composite panels, acrylic, and post-printing material cutting for signs and displays.
Apparel & Textile Industry:flexi sign, Post-printing fabric cutting and precision garment templates.
Aerospace & Automotive Components: Tight-tolerance machining for parts and tooling.
Custom Fabrication & Prototyping: One-off projects and specialized prototypes.
Advanced Woodworking & Furniture Decoration: Complex joinery, engraving, and decorative panels.

Performance Advantages:

Single setup multi-operation reduces handling, improves accuracy.
Automatic tool changes speed up production cycles.
Superior surface finish on diverse materials including metals, plastics, rubber, and composites.
Increased productivity with automated processes and minimal setup.
Ideal CNC Router for UV Printing, multi-function CNC Router, all-in-one CNC Cutter, and CNC Cutting Machine solution.

The TR-M Series delivers unparalleled precision CNC machining, multi-material versatility, and professional-grade performance. Built for demanding industrial applications, it is the perfect solution for packaging, plastics, signage, textiles, aerospace, automotive, and custom fabrication projects across the United States.

Metal Materials
- Light metals such as copper and aluminum.
Plastics and Polymers
- Includes PMMA, PC, PVC, PS, PP, PA, PE, PET, and POM.
Composite Materials
- MDF, carbon fiber composites, aluminum composite panels, honeycomb panels, and fiberglass (FRP).
Flexible Materials
- Foam, rubber, fabrics, thin films, leather, cardboard, felt, and sponge.
Hard Materials
- Solid wood, plywood, acrylic, and other rigid materials.

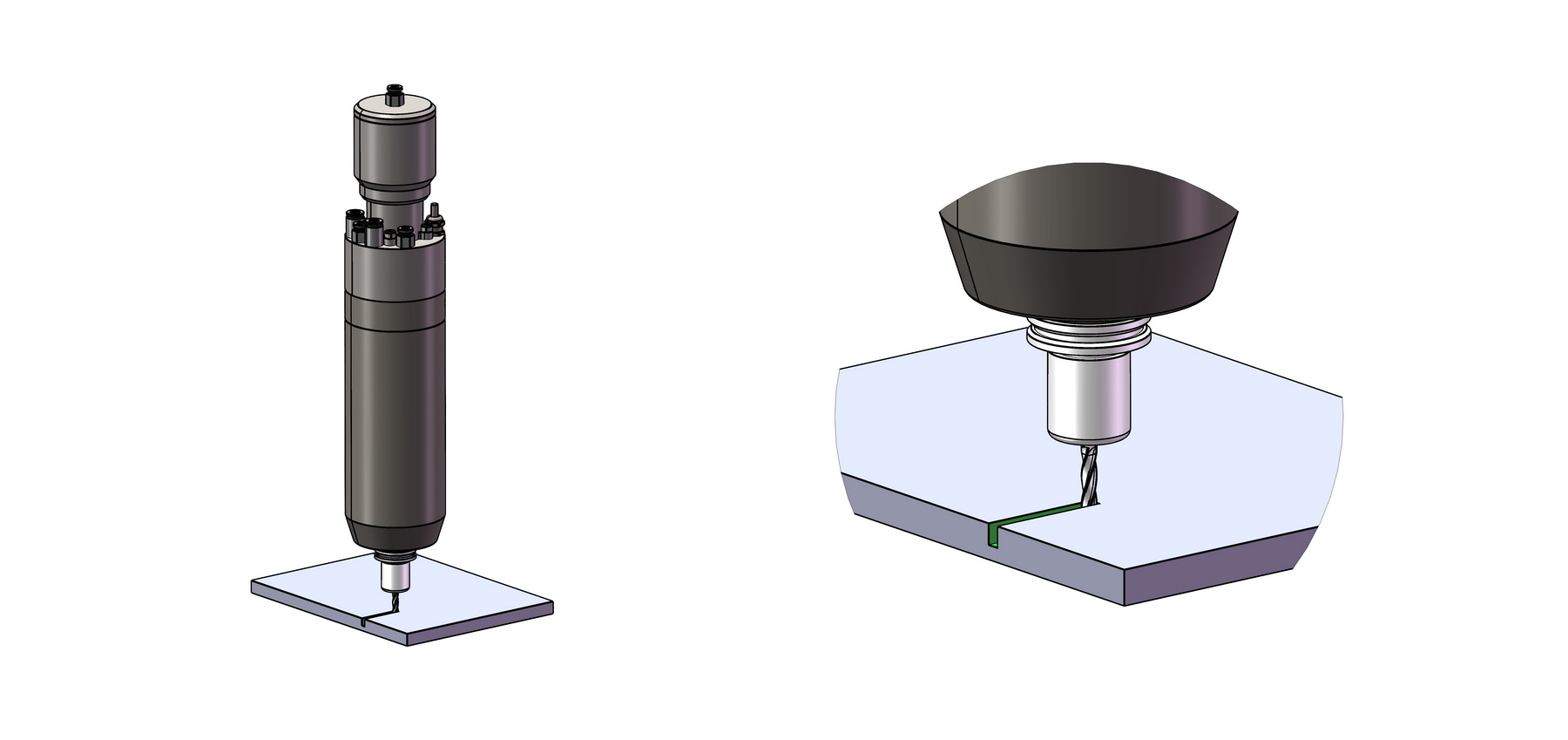

Milling Cutter Spindle

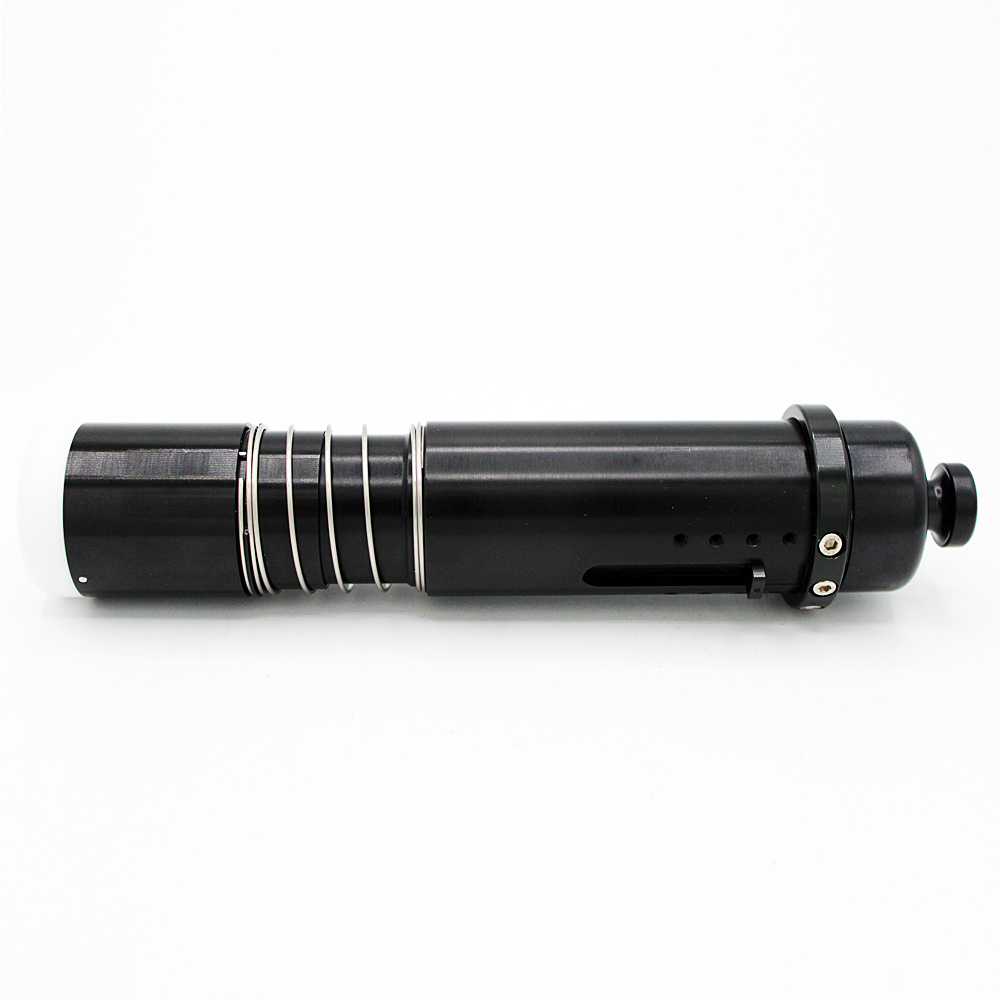

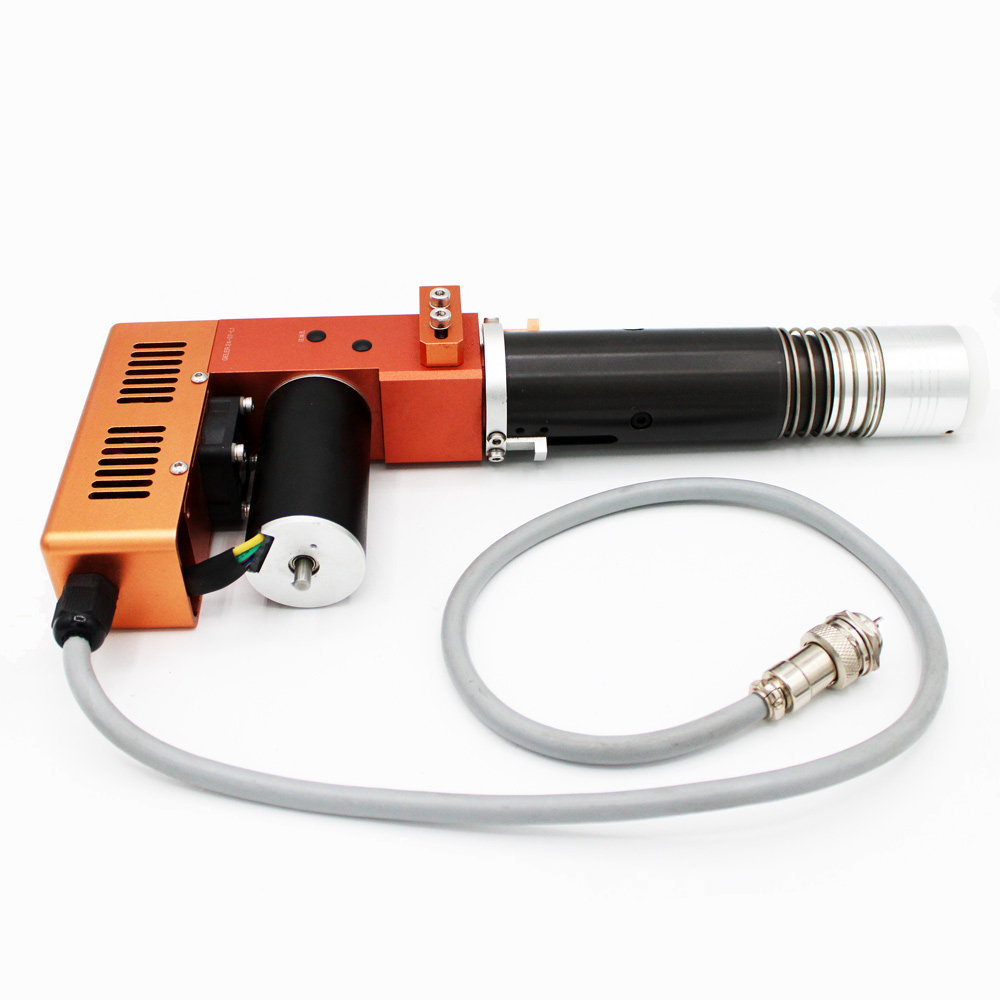

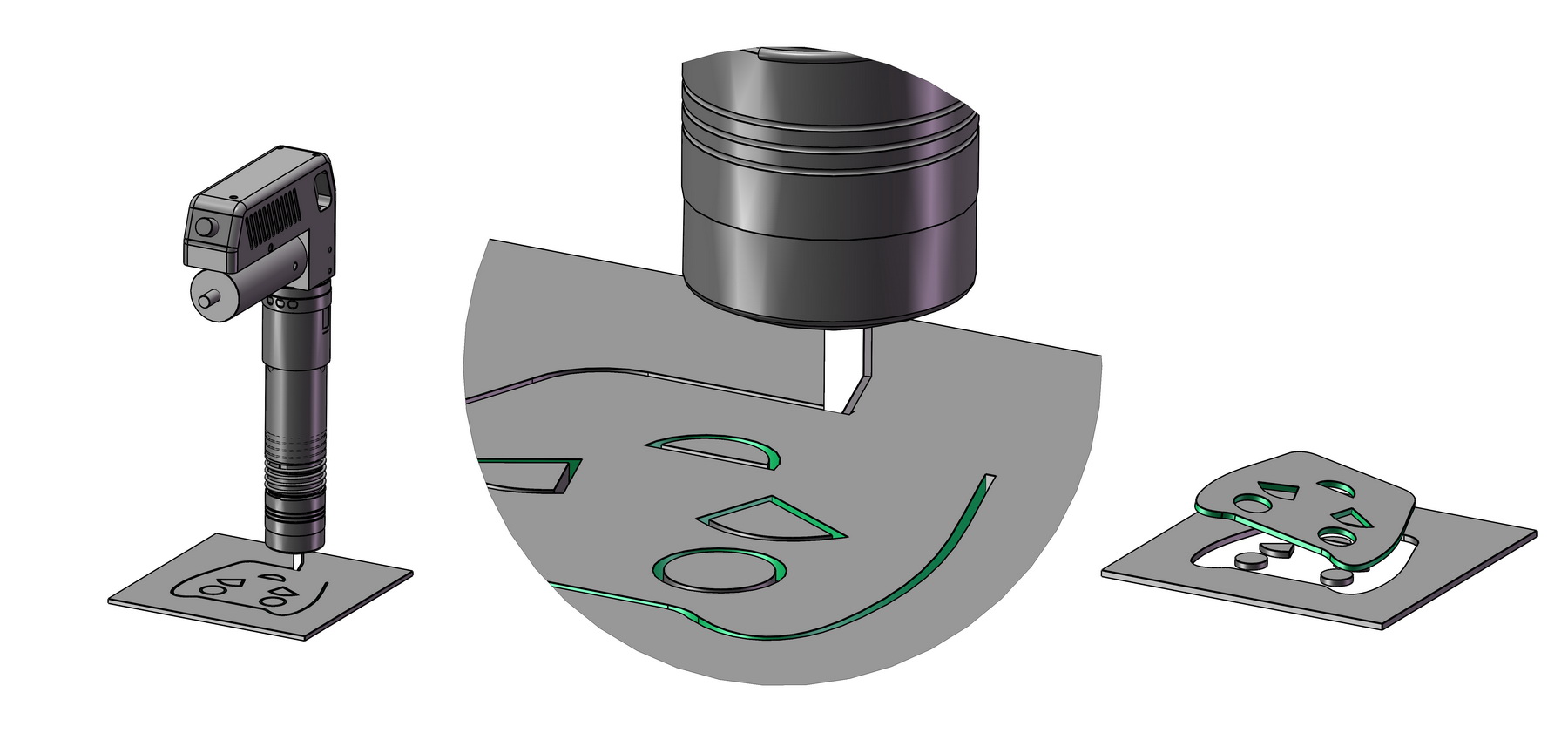

Electric Vibrating Knife

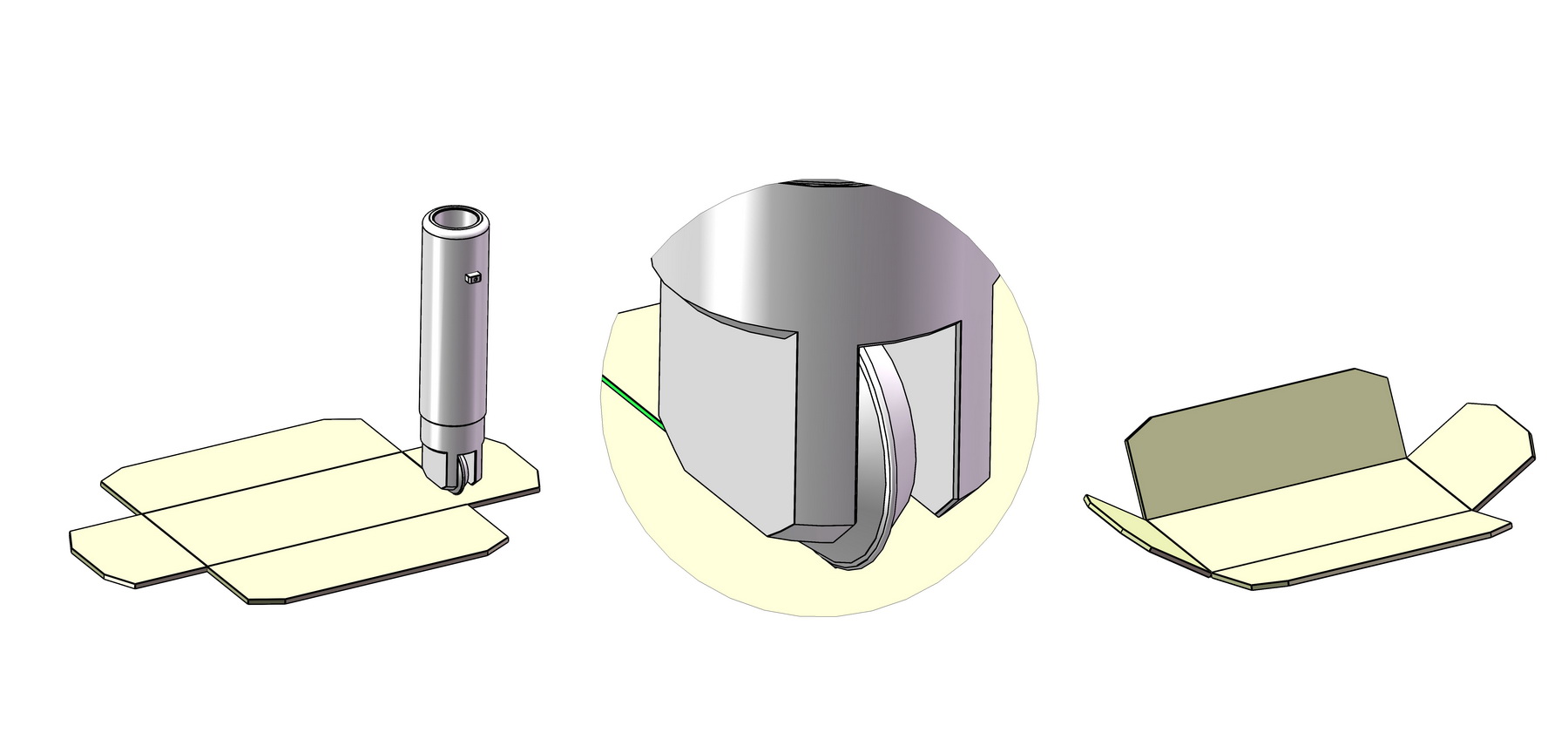

Creasing Knife

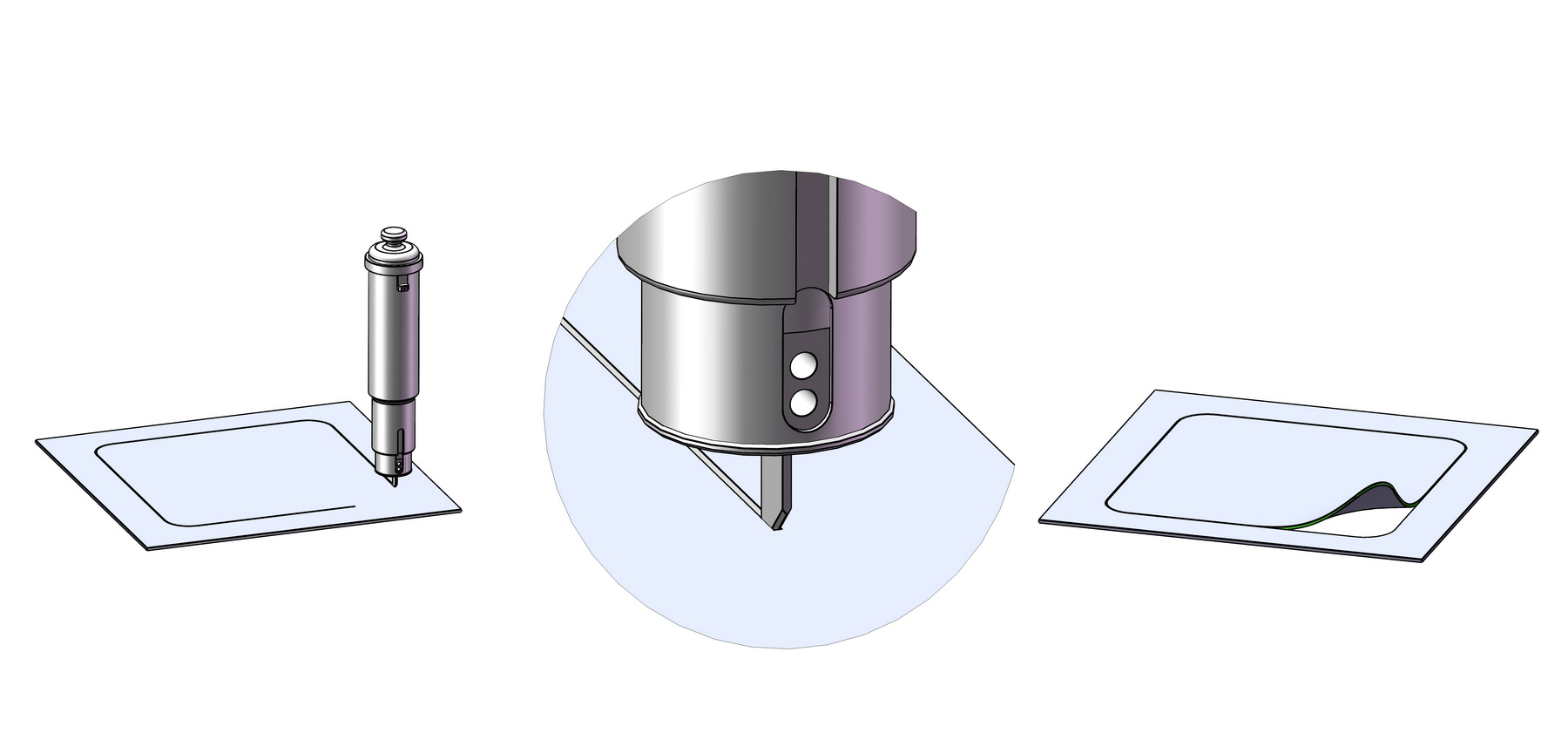

Pointed Knife

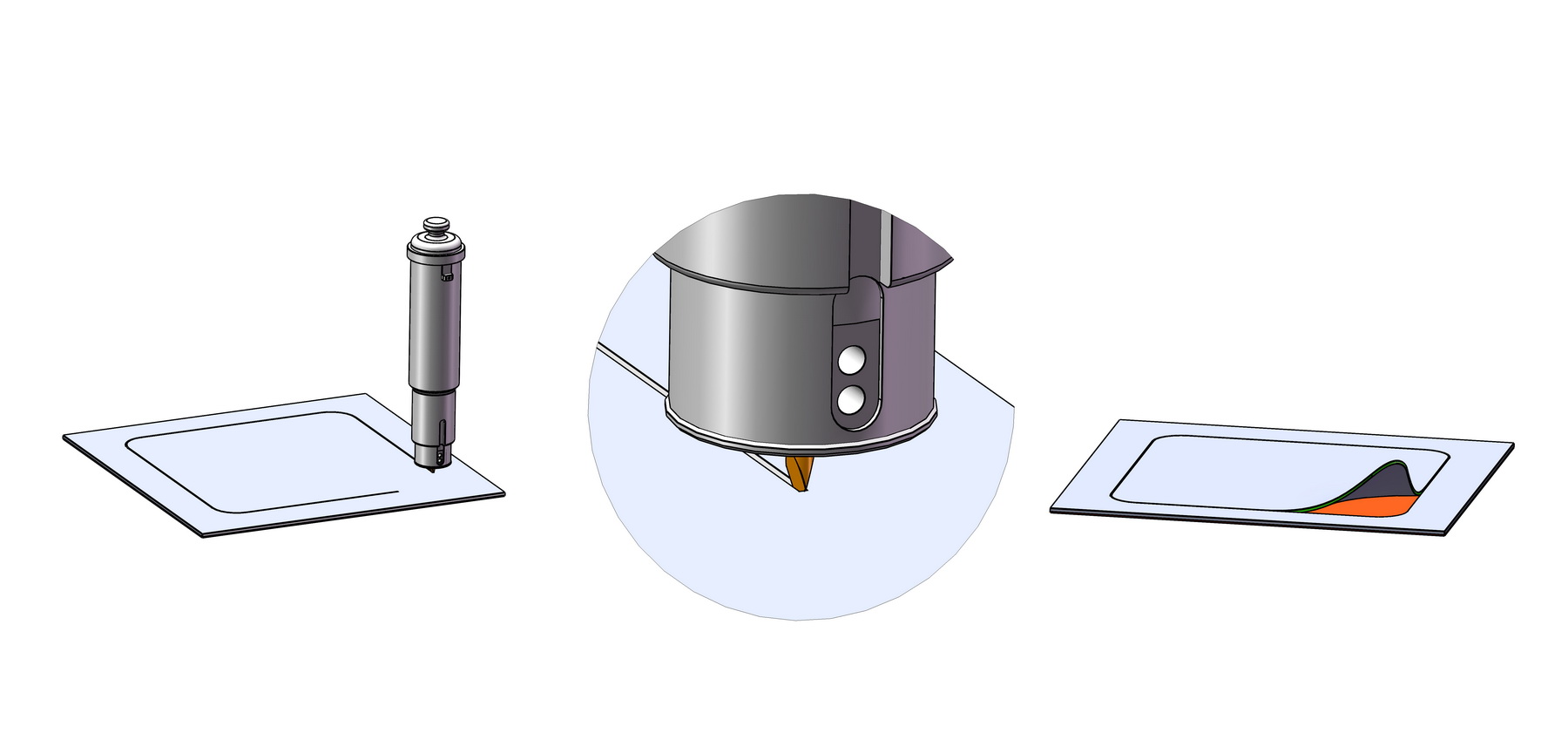

Spring Knife

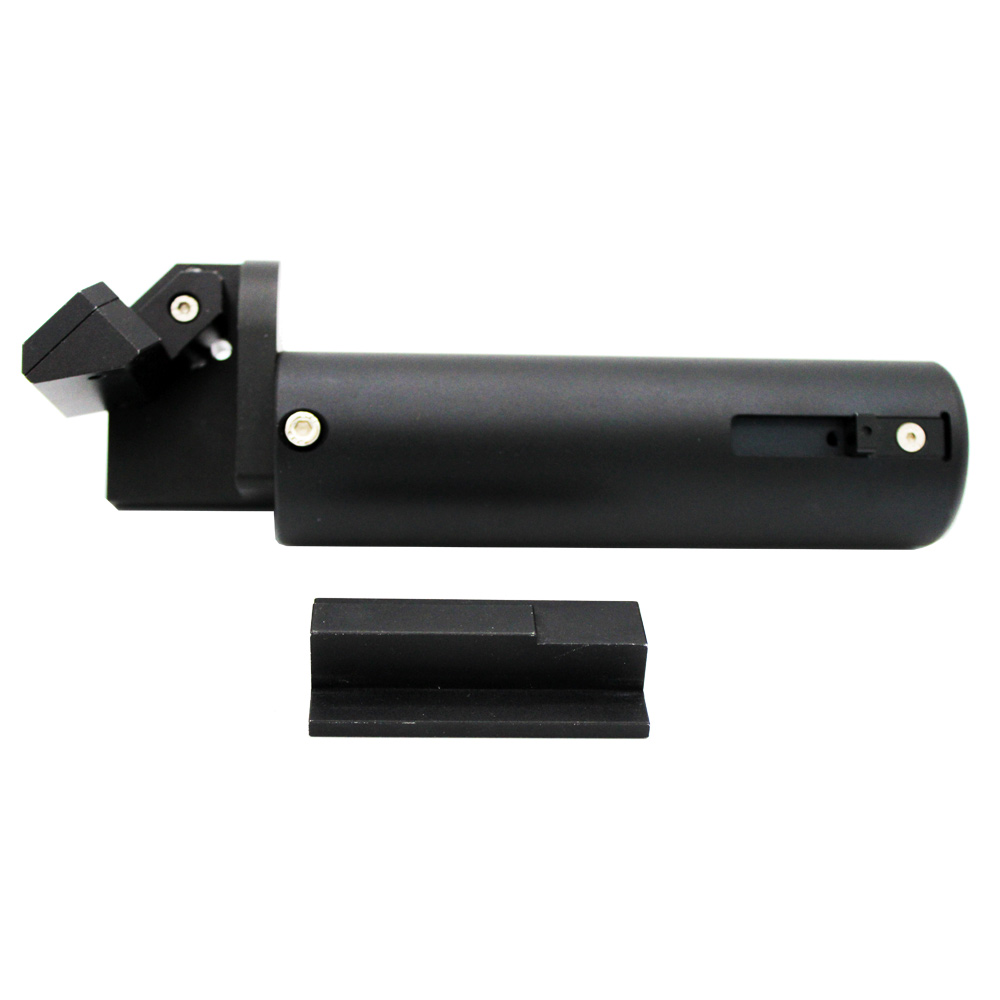

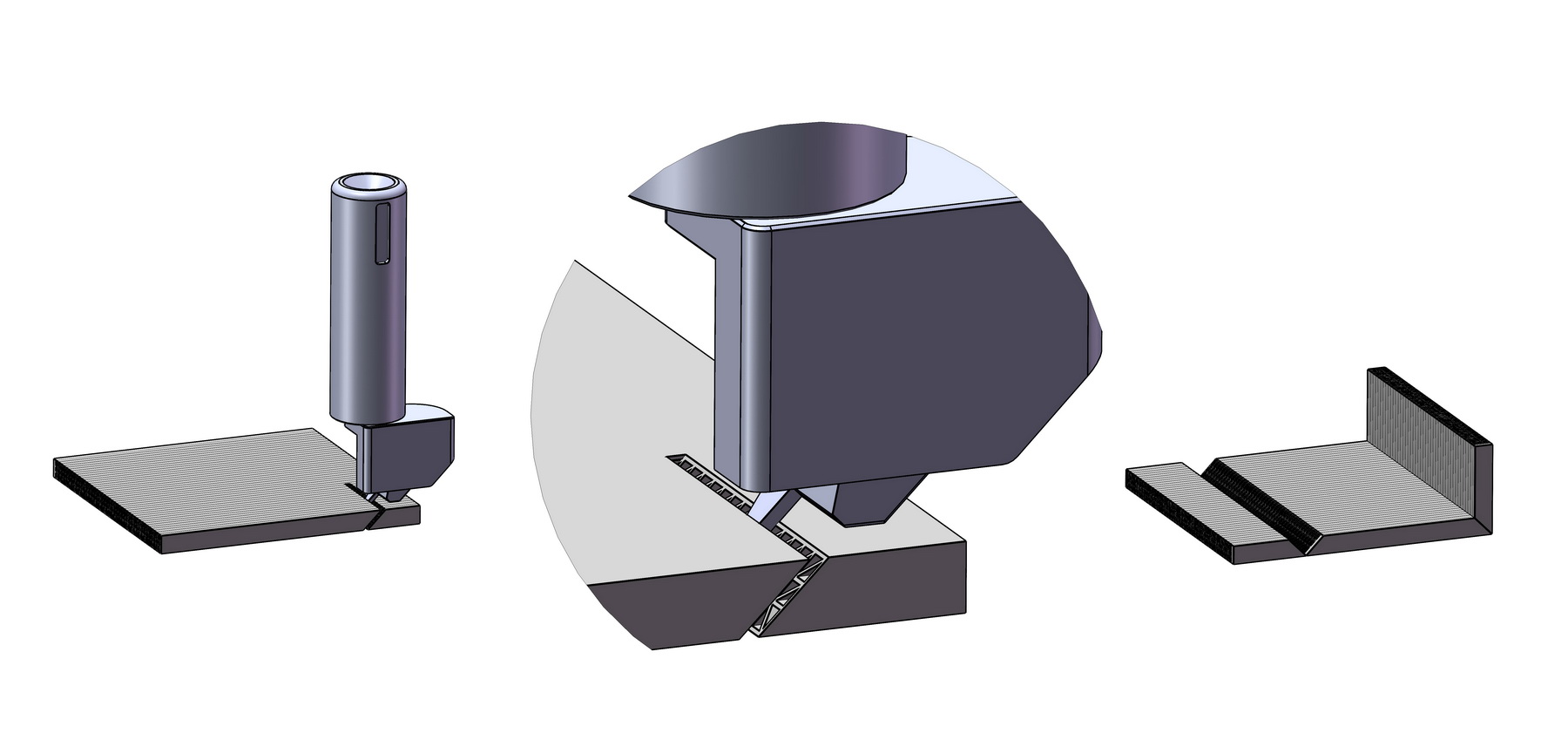

Oblique Knife

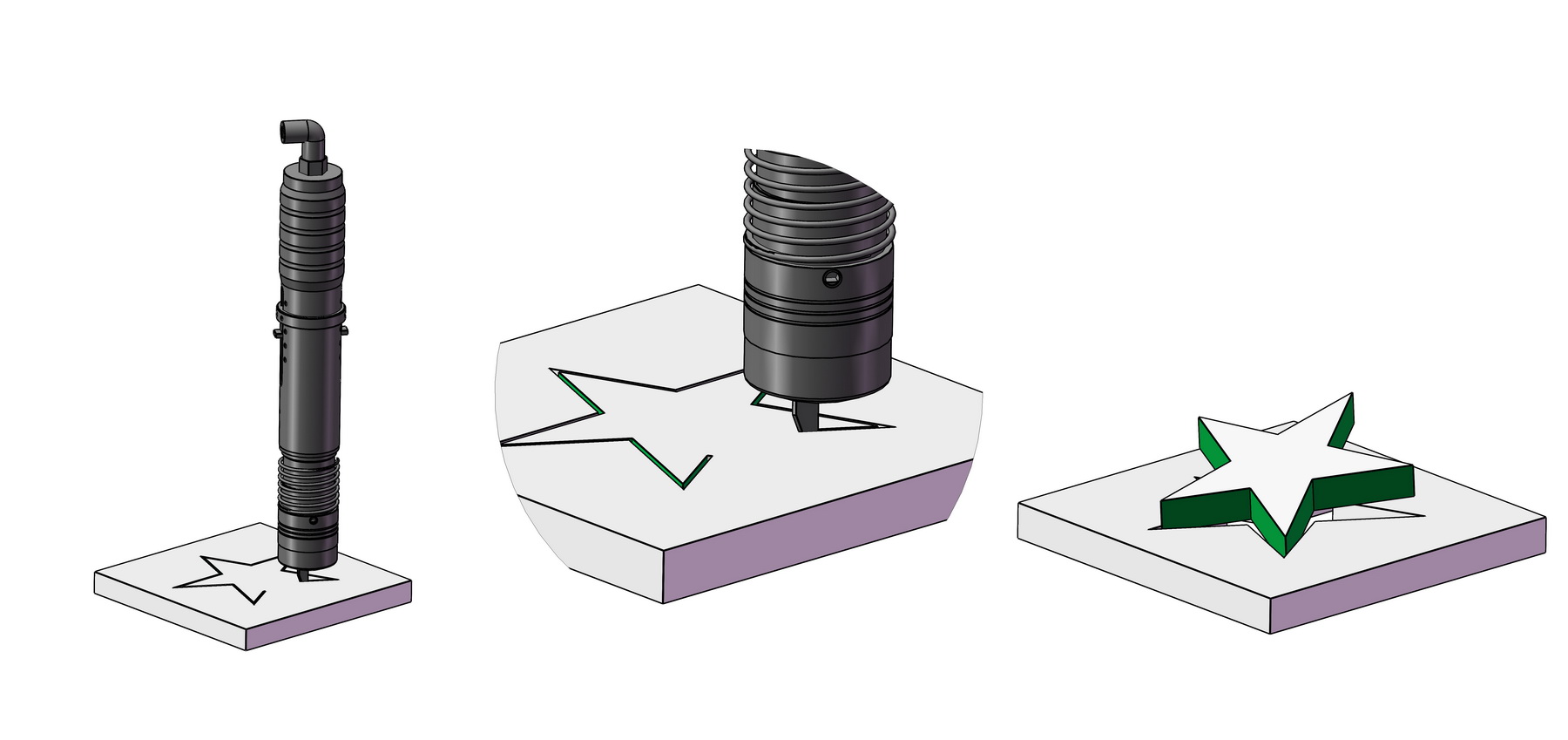

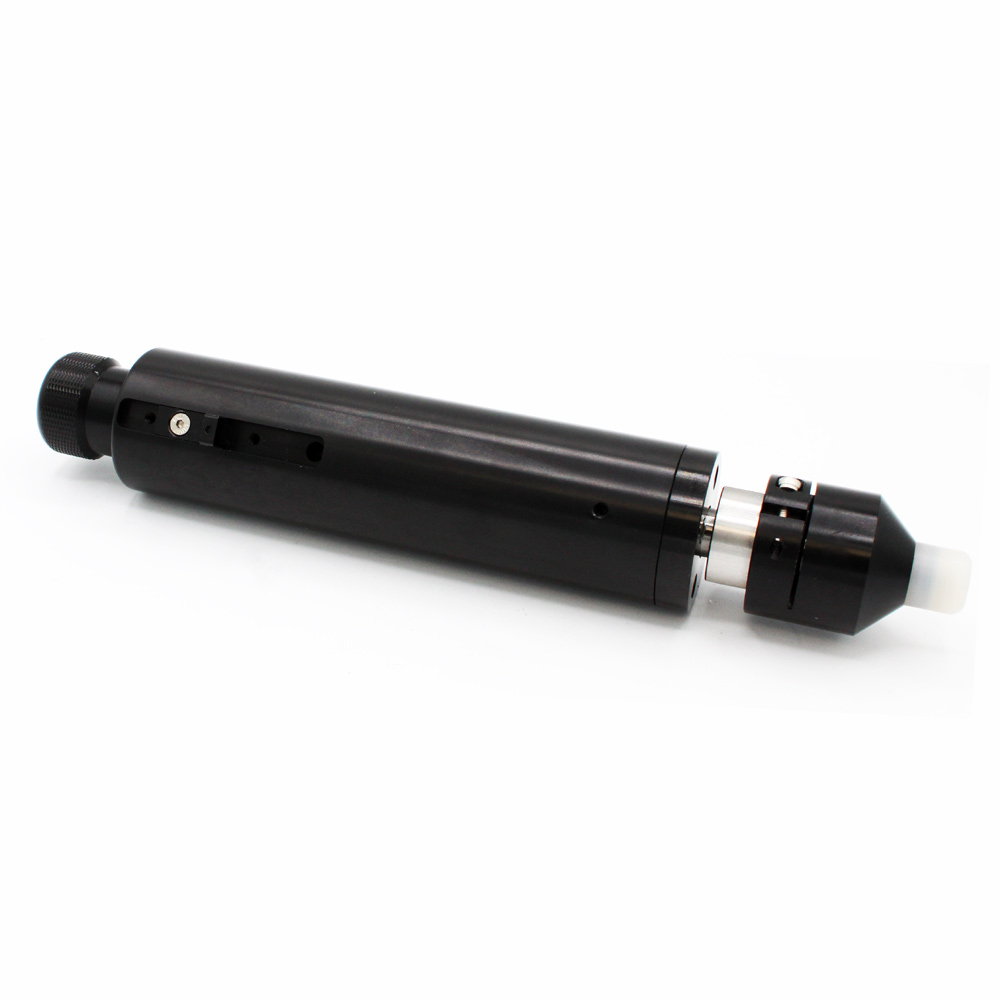

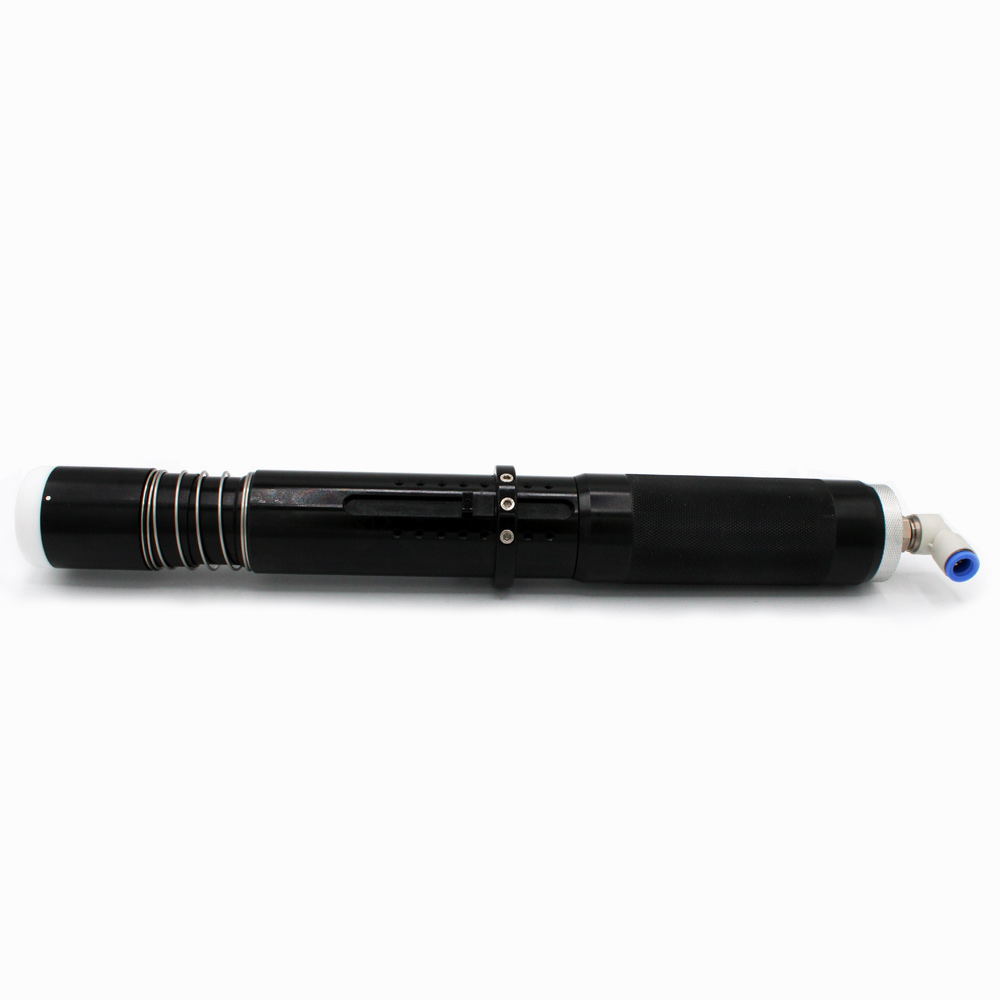

Pneumatic Vibrating Knife

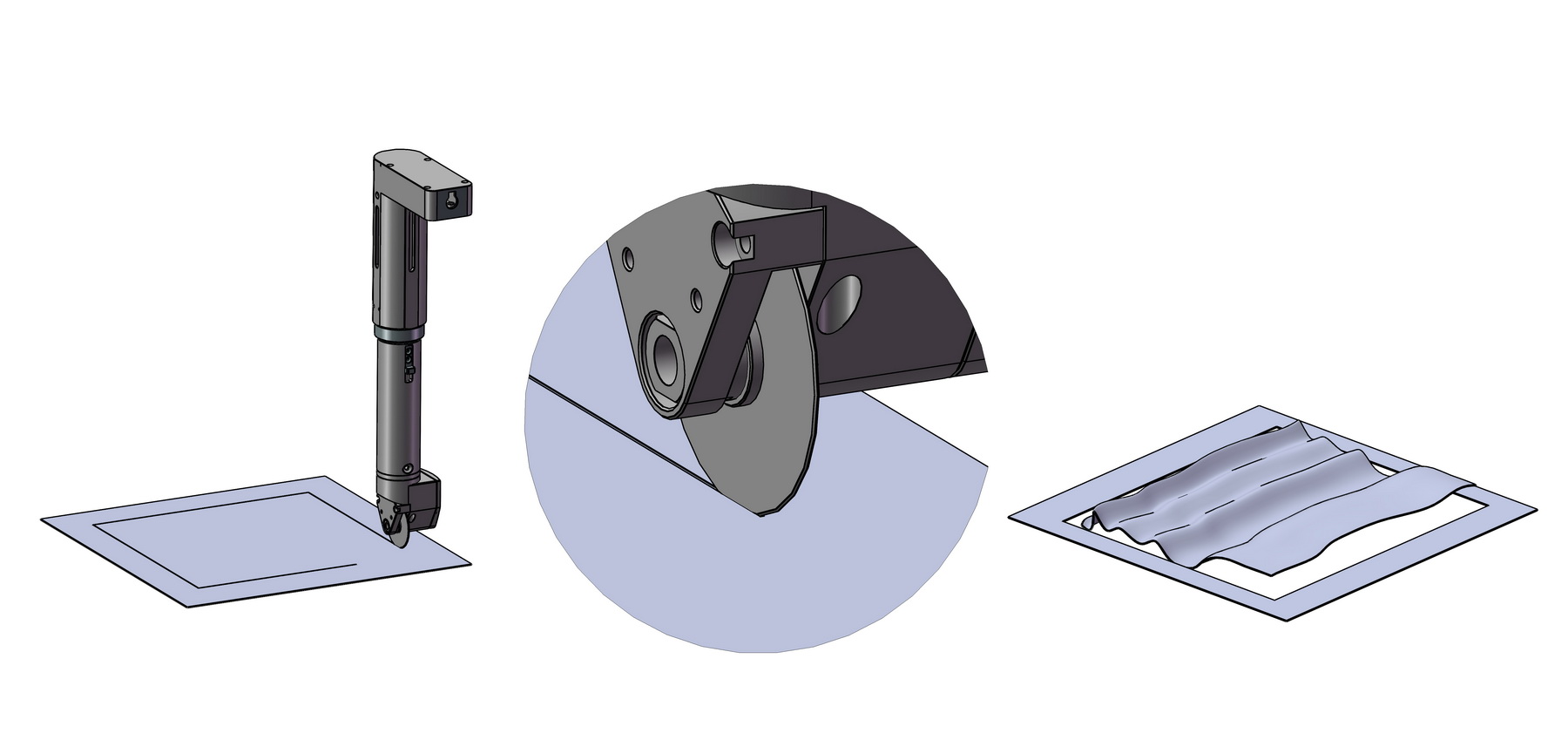

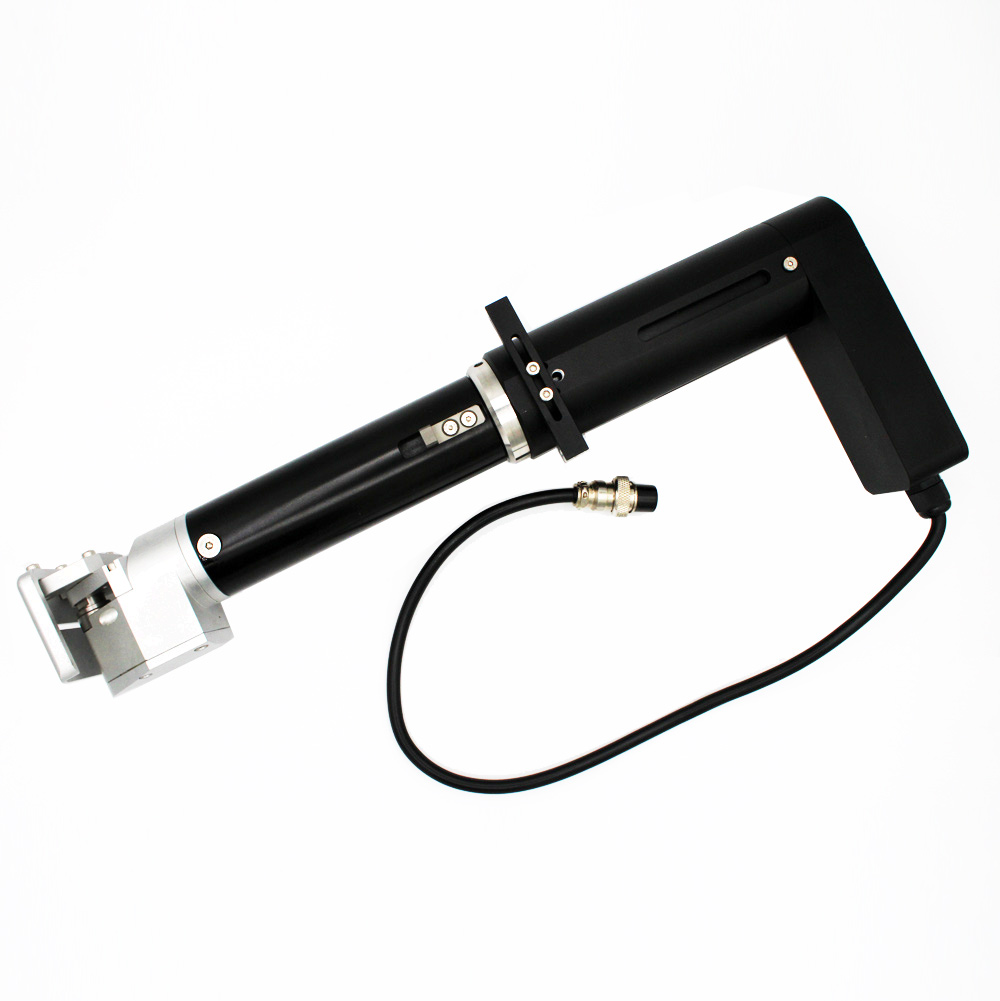

Active Wheel Knife

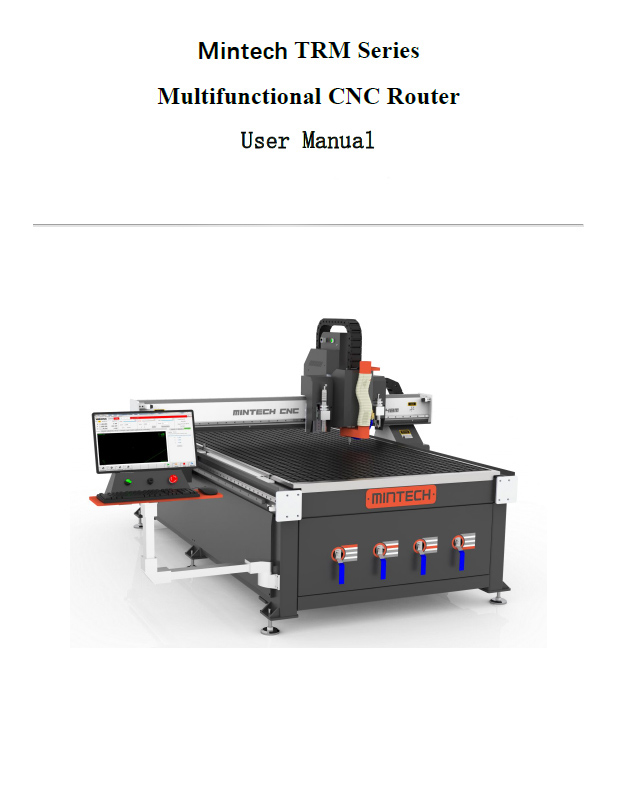

Documentation Available

Complete product documentation including manuals, technical specifications, and installation guides.
Contact our technical team to request specific documentation for this product.

Request Document

Technical Specifications

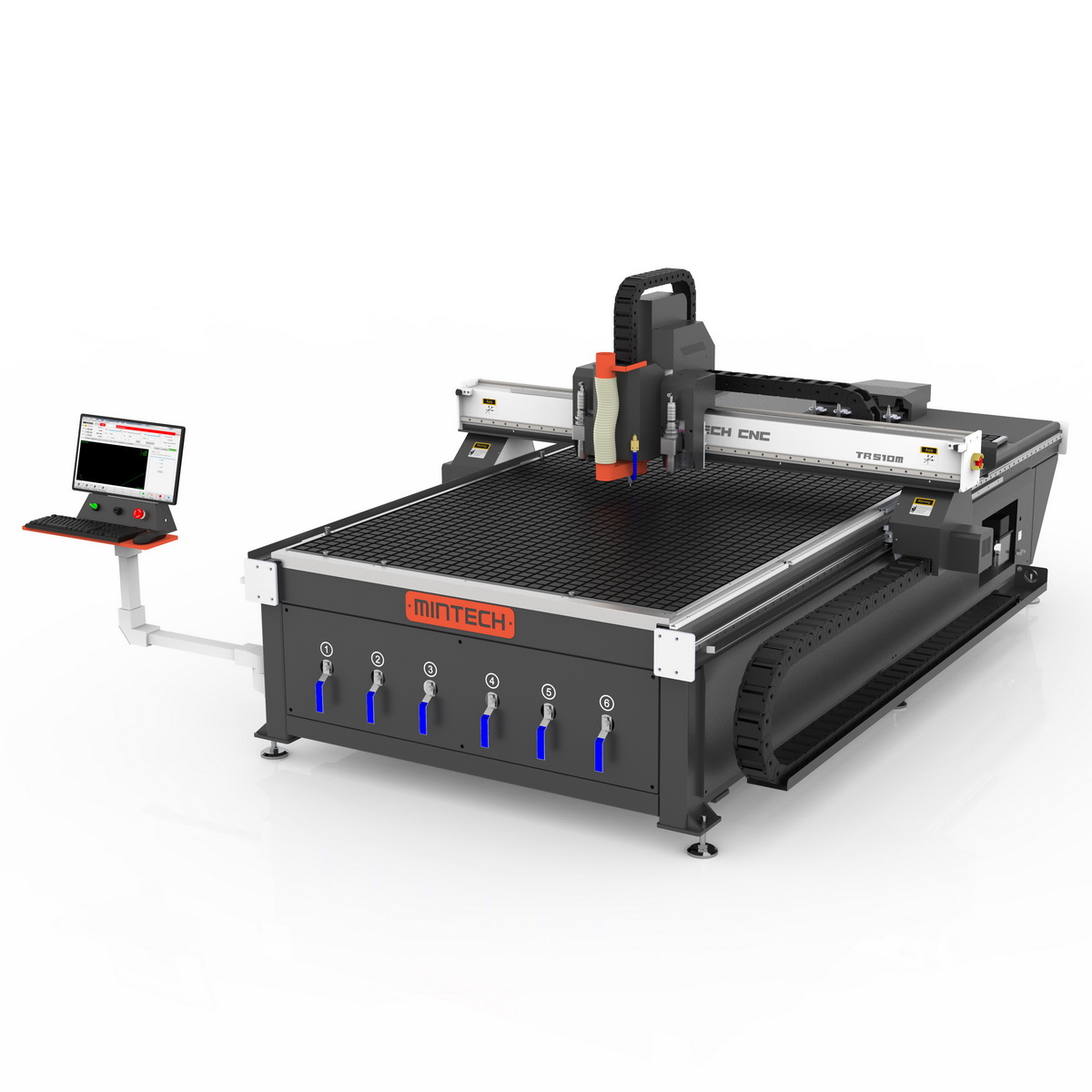

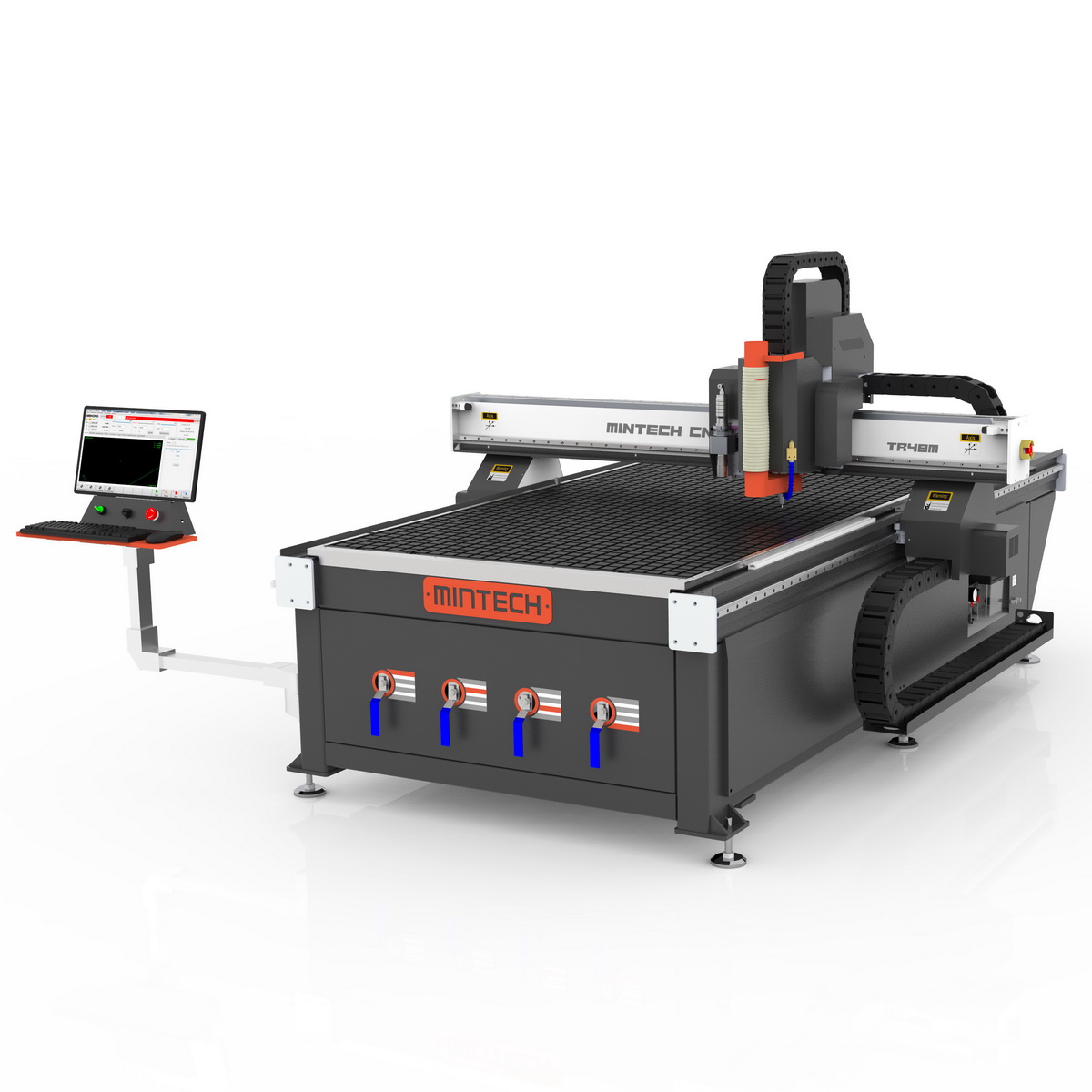

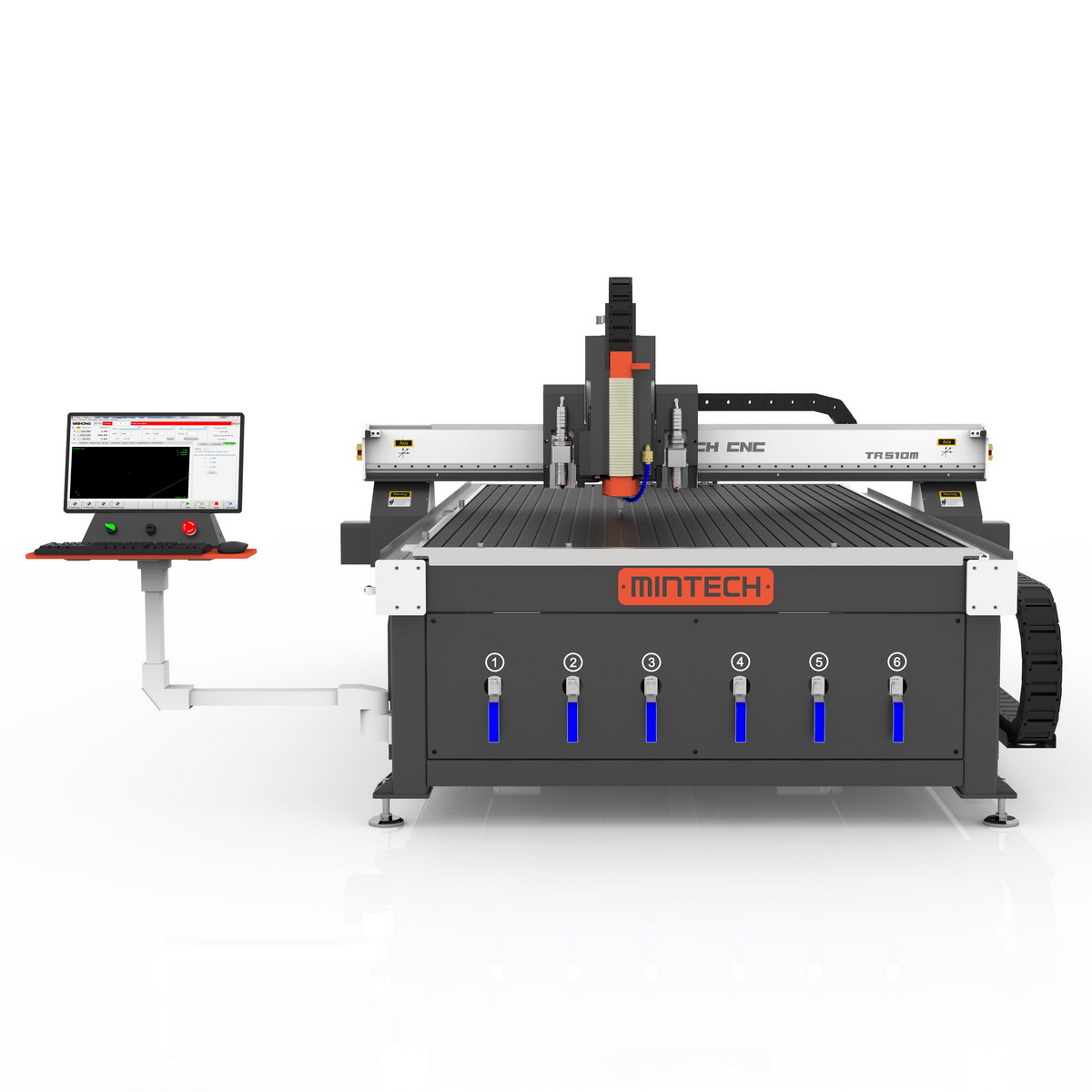

Model	TR48M	TR510M
Working area	4'× 8' ( 1250 × 2500 mm )	5' × 10' ( 1530 × 3060 mm )

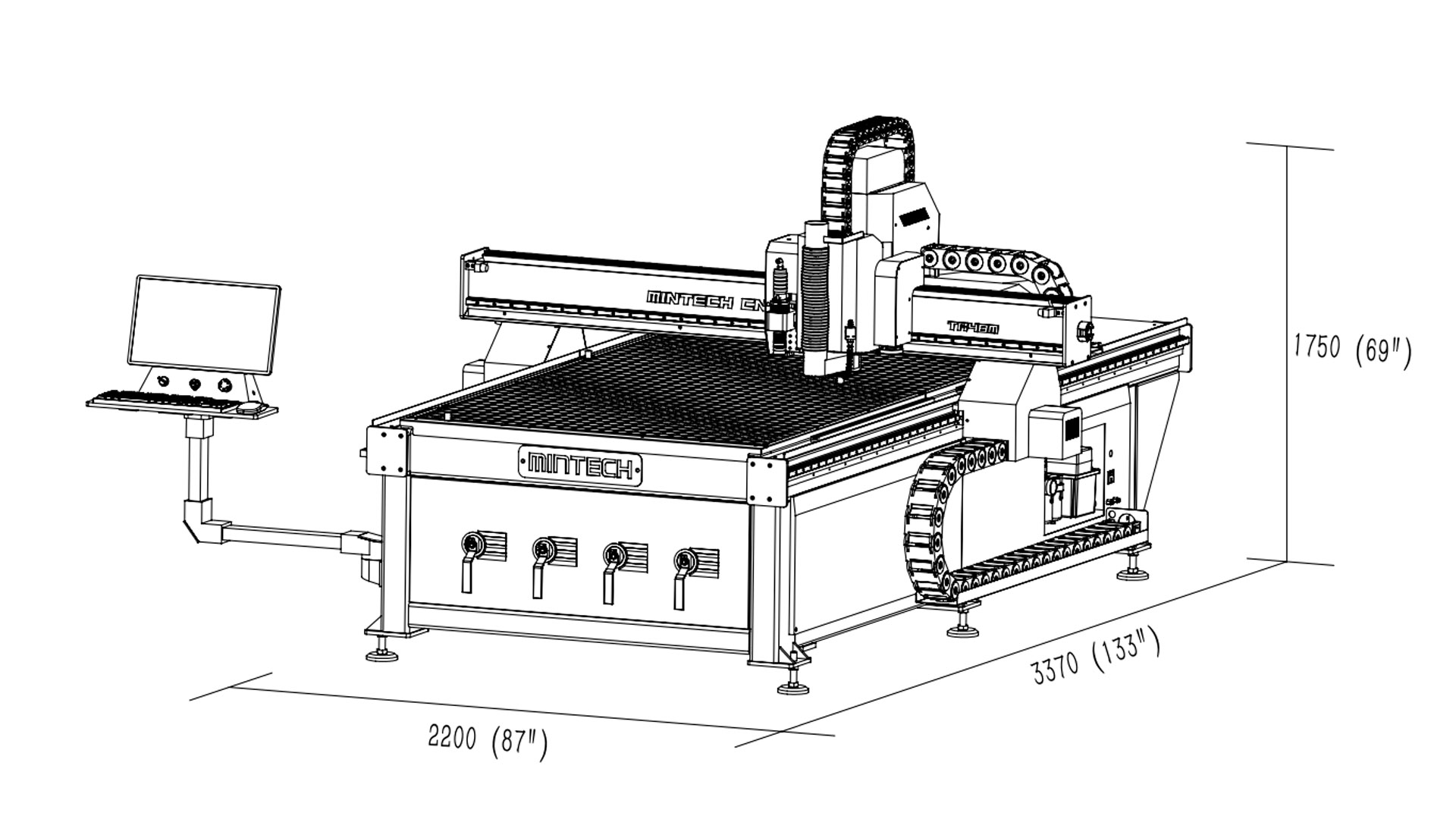

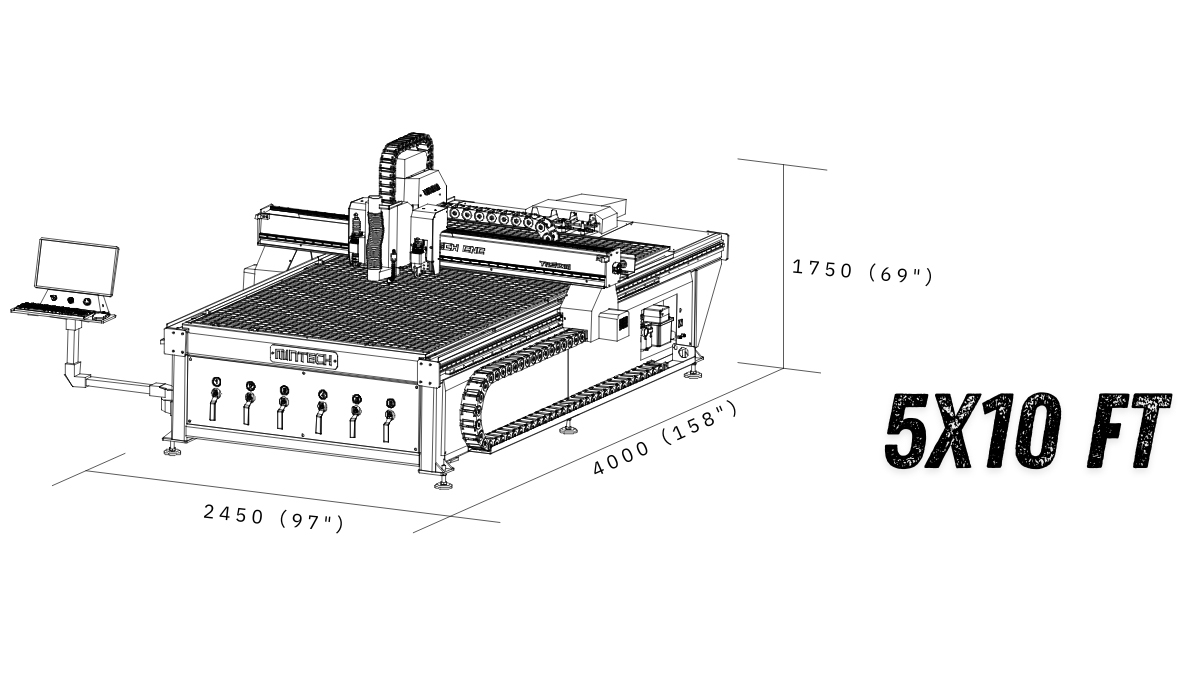

Dimensions	133" × 87" × 69" ( 3370 × 2200 × 1750 mm ) View image	158" × 97" × 69" ( 4000 × 2450 × 1750 mm ) View image
Weight	3400 lbs	3900 lbs
Work Area and Capacity	Z-Axis Travel: 4 inches (110 mm). Material Thickness: Up to 3.5 inches (90 mm). Maximum Cutting Thickness: Up to 1 3/4 inches (45 mm) with appropriate tooling.
Machine Structure	Frame: Square steel pipe welded structure, stress-relieved through high-temperature aging.
Working Table	Phenolic composite grid vacuum table with aluminum T-slots.
Control System	CNC System: MDRCNCRouter VC204-C. File Support: DXF, AI, CDR, NC, G-code, with automatic G-code generation. Interface: Integrated industrial control computer with handheld controller. Communication Protocols: MODBUS/TCP, OPC UA, MT CONNECT.
CAM Software Compatibility	Compatible with industry-standard software such as VCarve, Aspire, Alphacam, Engview, MasterCAM, Enroute, Type 3 and others
Motion and Drive	Movement Type: Gantry movement. Drive System: Servo-driven motors. Transmission: XY-Axis: Helical rack-and-pinion with linear guides. Z-Axis: Ball screw with linear guides. Speed: Max travel speed of 197 ft/min ( 60 m/min ). Precision: ±0.004 inches ( ±0.1 mm ). Repeatability: ±0.002 inches ( ±0.05 mm ).
Spindle	Power: 5.3 HP ( 4 kW ). Speed: Up to 40,000 RPM ( Water-cooled ). Tool Holder: ISO 20, ER20 collet. Cutting Tool: Milling Cutter Spindle.
Cooling method	Water Cooling
Cutting Heads ( Optional Modules )	Electric Vibrating Knife: For cutting flexible materials. Active Wheel Knife: For contour cutting. Pointed Knife: For fine details. Oblique Knife (V Cut): For V-shaped cuts. Spring Knife (Kiss Cut): For light, shallow cuts. Creasing Knife: For scoring and folding lines. Pneumatic Vibrating Knife: For precise cutting of dense materials.
Power and Utility Requirements	Main Power: 208-240V, single-phase, 60 Hz, 30A. Compressed Air: 0.6-0.8 MPa (87-116 psi), ≥3-5 CFM (85-140 L/min). Vacuum Requirements: 117.7-176.6 CFM (200-300 m³/h), vacuum pressure ≥85 mbar (8500 Pa).
Misting / Lubricating System	Includes flexible loc-line nozzles for adjustable coolant or mist delivery to the cutting area, ensuring efficient lubrication and extended tool life.
Environmental Requirements	Temperature: 10-40°C. Humidity: 40-60%.
Available Configurations	Optional high-resolution CCD camera for precise positioning and material alignment.
Advantages	Exceptional Performance: High-speed spindle and cutting precision meet rigorous quality standards. Versatility: Handles a wide variety of materials with multiple cutting tools and modules. Automation: CCD recognition system ensures accurate alignment and consistent results. Ease of Use: Intuitive control system simplifies even complex tasks.
